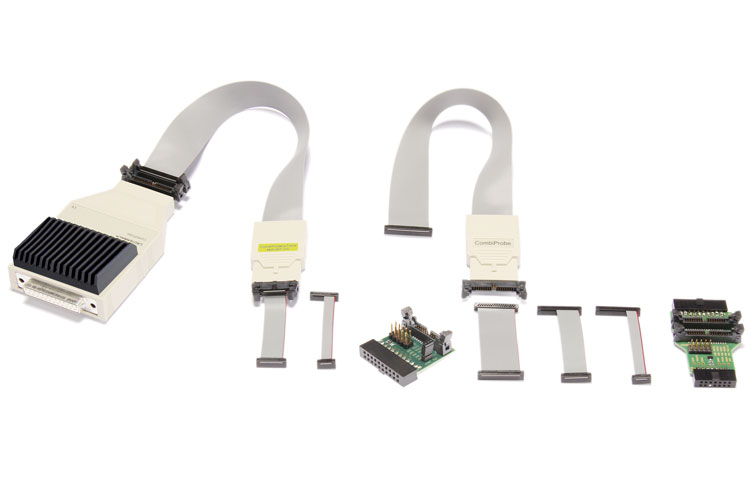

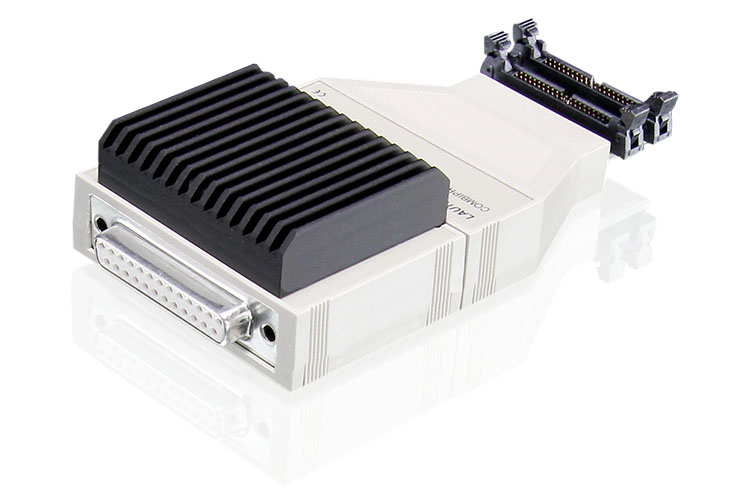

Package for CombiProbe 2 ARM

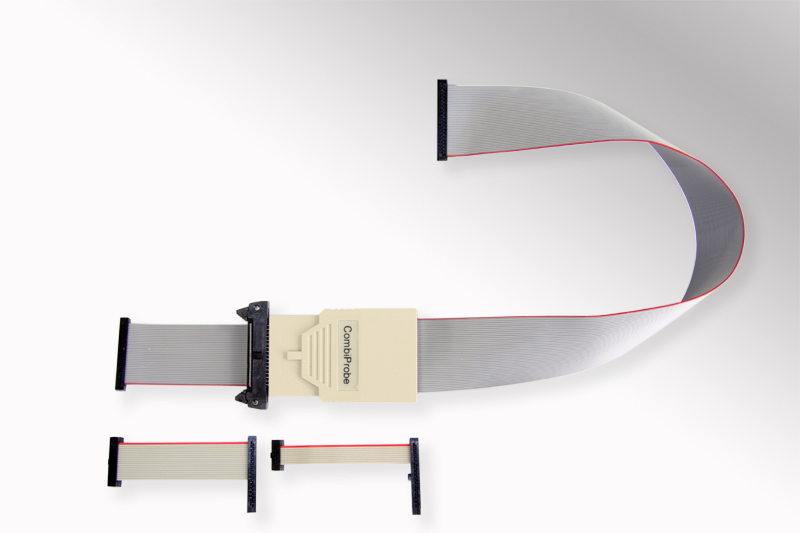

Debug cable and 512 MByte of trace memory

Supports Standard-JTAG, cJTAG and
Serial Wire Debug Port

Bandwidth of 400 MBit/s per trace channel

requires at least one of the following A-licenses:
LA-3743A Debug. for Cortex-A/R (Armv8 and Armv9) Add.
LA-7742A (JTAG Debugger License for ARM9 Add.)
LA-7746A (JTAG Debugger License for ARM7 Add.)
LA-7765A (JTAG Debugger License for ARM11 Add.)
LA-7843A (JTAG Debugger License for CORTEX-A Add.)
LA-7844A (JTAG Debugger License for CORTEX-M Add.)

Trace support (up to 4-bit) included:
- MIPI System Trace
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU

Supports the following trace licenses:
LA-7970X (Trace License for the ARM Architecture)

requires Power Debug Interface USB 3.0,
Power Debug II or Power Debug PRO

5V tolerant inputs; max. output level 3.3V
