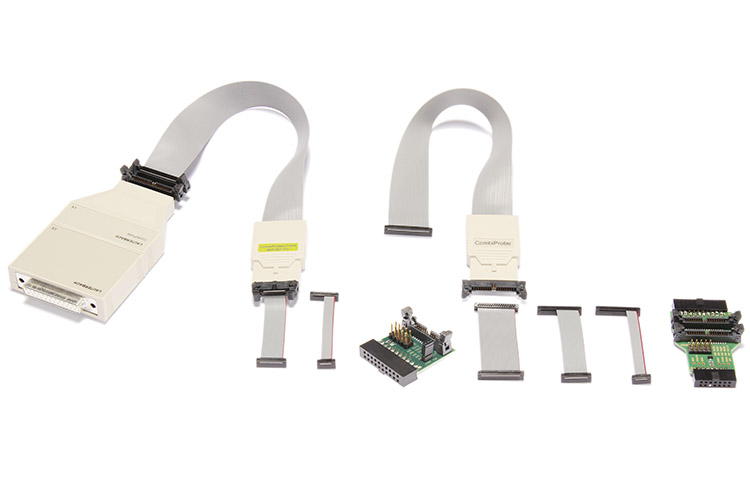

Package for CombiProbe ARM
Package for CombiProbe ARM

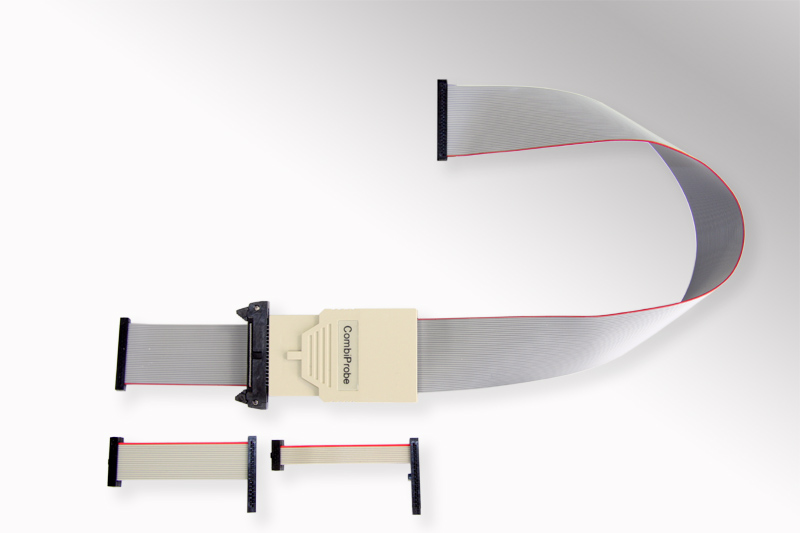

Debug cable and 128-MByte of trace memory
Supports Standard-JTAG, cJTAG and
Serial Wire Debug Port
Bandwidth of 400 MBit/s per trace channel
requires at least one of the following A-licenses:
LA-7742A (JTAG Debugger License for ARM9 Add.)
LA-7746A (JTAG Debugger License for ARM7 Add.)
LA-7765A (JTAG Debugger License for ARM11 Add.)
LA-7843A (JTAG Debugger License for CORTEX-A Add.)
LA-7844A (JTAG Debugger License for CORTEX-M Add.)
Trace support (up to 4-bit) included:
- MIPI System Trace
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU
Supports the following trace licenses:
LA-7970X (Trace License for the ARM Architecture)
requires Power Debug Interface USB 3.0,
Power Debug II or Power Debug PRO
5V tolerant inputs; max. output level 3.3V
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Package for CombiProbe ARM
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9-A/R Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-3750A Debug License for ARC® Add.
- LA-2760A Debugger for dsPIC Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-3799X Trace License for TriCore ED
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-3970X Trace Lic. for Intel® Processor Trace (COB)
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-2752X Trace License for STRED (Debug Cable)
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
