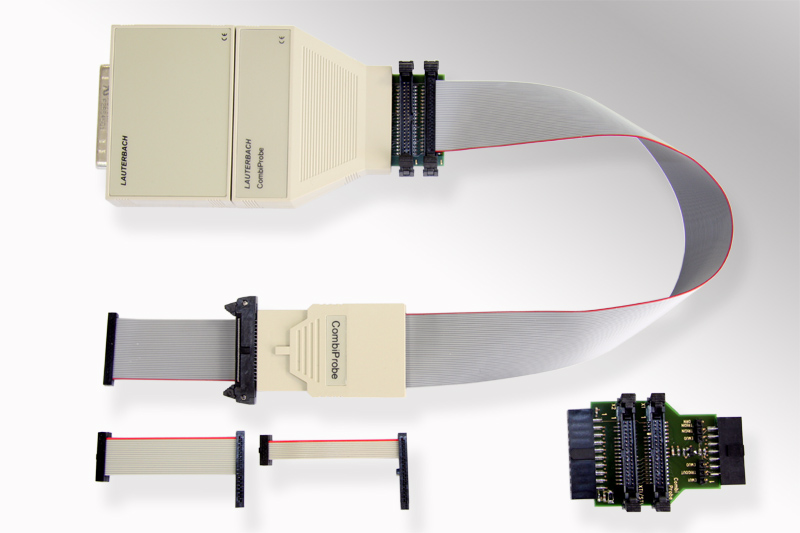

CombiProbe ARM-Debugger and 4-Bit Trace
CombiProbe ARM-Debugger and 4-Bit Trace
Debug cable and 128-MByte of trace memory
Supports Standard-JTAG, cJTAG and
Serial Wire Debug Port
Bandwidth of 200 MBit/s per trace channel
requires at least one of the following A-licenses:
LA-7742A (JTAG Debugger License for ARM9 Add.)
LA-7746A (JTAG Debugger License for ARM7 Add.)
LA-7765A (JTAG Debugger License for ARM11 Add.)
LA-7843A (JTAG Debugger License for CORTEX-A Add.)
LA-7844A (JTAG Debugger License for CORTEX-M Add.)
Trace support (up to 4-bit) included:
- MIPI System Trace
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU
Supports the following trace licenses:
LA-7970X (Trace License for the ARM Architecture)
requires Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or Power Debug PRO
5V tolerant inputs; max. output level 3.3V
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the CombiProbe ARM-Debugger and 4-Bit Trace
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9 Add.
- LA-3776A JTAG Debugger for Intel x86/x64 Add.
- LA-3750A Debug License for ARC® Add.
- LA-2751A JTAG Debugger for STRED Add.
- LA-3712A JTAG Debugger for ZSP500 DSP Core Additional
- LA-7746A JTAG Debugger License for Arm7 Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-7844A Debug Cortex-M (Armv6/7/8 32-bit) Add.
- LA-7742A JTAG Debugger License for Arm9 Add.
- LA-7843A Debug Cortex-A/-R (Armv7 32-bit) Add.
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-7970X Trace License for Arm (Debug Cable)
- LA-2752X Trace License for STRED (Debug Cable)
- LA-7765A JTAG Debugger License for Arm11 Add.
- LA-3741A Debug License for Hexagon Add.
Available Converters
- LA-3814 ETMv3 Conv. Mictor-38/MIPI-34 to MIPI-60
- LA-3812 Conv. OMAP4 2xMic38/IDC20A/MIPI34 to MIPI60
- LA-3782 Converter MIPI-34 to TI-20-Compact
- LA-3808 Conv. L8540 2xMic38/2xMIPI34/IDC20A to MIPI60
- LA-3784 Converter MIPI-34 to MIPI-60
- LA-3768 ETMv1 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
- LA-3769 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
