Debugger for dsPIC (PACK)
Debugger for dsPIC (PACK)
Debug Cable with debug license
to debug dsPIC single-core controller from Microchip.
Supports dsPIC33A, dsPIC33C, and dsPIC33E.
To debug dual-core dsPICs order instead:
LA-3084 Package for CombiProbe 2 dsPIC Dual Core.

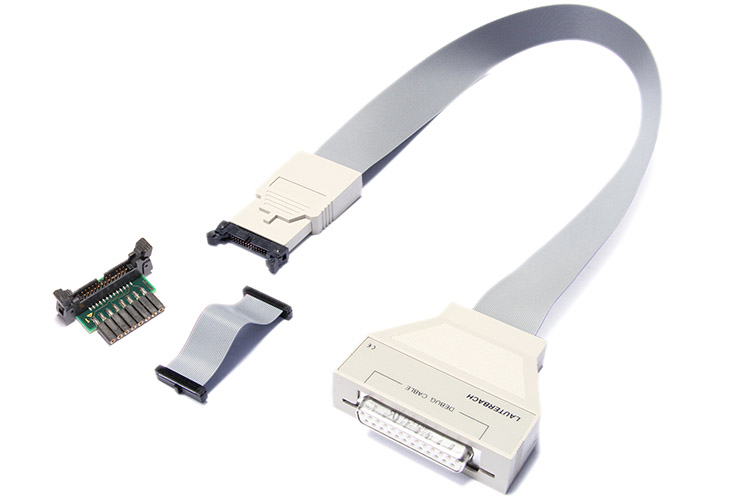

Includes Debug Cable with 26 pin connector (1.8V to 5.0V).

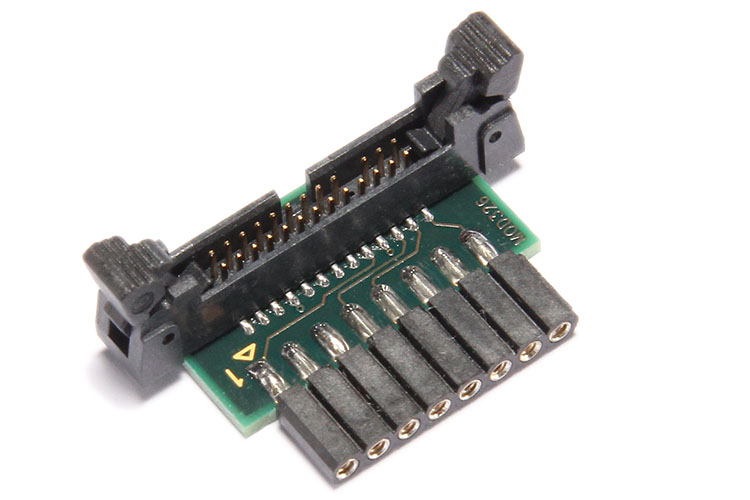

Includes Converter to MICROCHIP-8 header.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires one of the following PowerDebug base modules:
PowerDebug X-Series, PowerDebug E-Series, PowerDebug PRO,
PowerDebug Interface USB 2/USB 3, PowerDebug II,
PowerDebug Ethernet, PowerTrace Ethernet.
Technical Information
Technical Data
INCLUDED PRODUCTS:
Extend the Debugger for dsPIC (PACK)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Debugger for Armv8/Armv9-A/R/X Add.
- LA-3750A Debug License for ARC® 32-bit Add.
- LA-3732A OCDS Debugger for XC800 Additional
- LA-3730A Debug License for MicroBlaze Additional
- LA-7960X License for Multicore Debugging
- LA-7838A Debug License for C6000 Add.
- LA-7753A JTAG Debugger for MPC5xxx (ICD) Additional
- LA-3760A Debug License for Xtensa® Add.
- LA-3719A Debugger for RH850 Additional
- LA-7844A Debugger for Cortex-M (Armv6/7/8-M) Add.
- LA-7847A Debug License for C2000 Add.
- LA-7843A Debugger for Armv7-A/R Add.
- LA-2540A Debugger for RISC-V 32-bit Add.
- LA-2756A JTAG Debugger for PRU Add.
- LA-2759A Debug License for C7000 Add.
- LA-7756A Debugger for TriCore Additional
- LA-2541A Debugger for RISC-V 64-bit Add.
