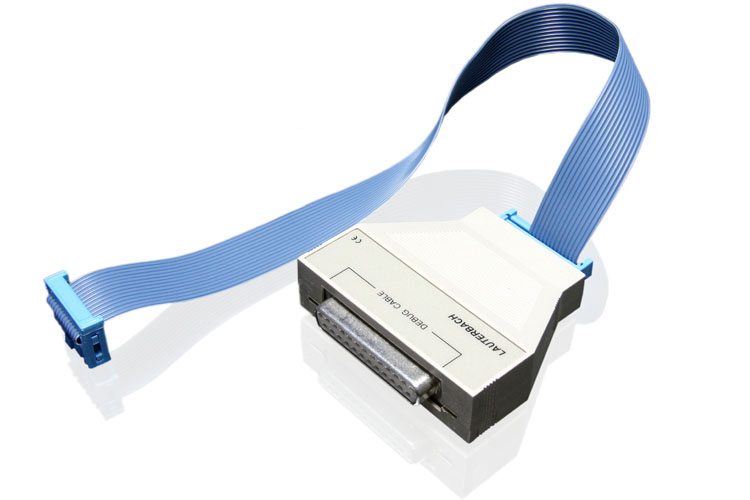

Debugger for SH2/SH3/SH4 H-UDI-14 Pin (ICD)
OVERVIEW
Debugger for SH2/SH3/SH4 H-UDI-14 Pin (ICD)
Product number:
LA-7758
supports a lot of SH2, SH3 and SH4
derivatives from Renesas
includes software for Windows, Linux and MacOSX
requires Power Debug Module
debug cable with 14 pin connector
Targets with 36 pin Hirose connector
require the converter LA-7980
for ST40 targets please request debug cable with 20 pin connector
Product Details
Technical Information
Technical Data
Add-ons
Extend the Debugger for SH2/SH3/SH4 H-UDI-14 Pin (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
