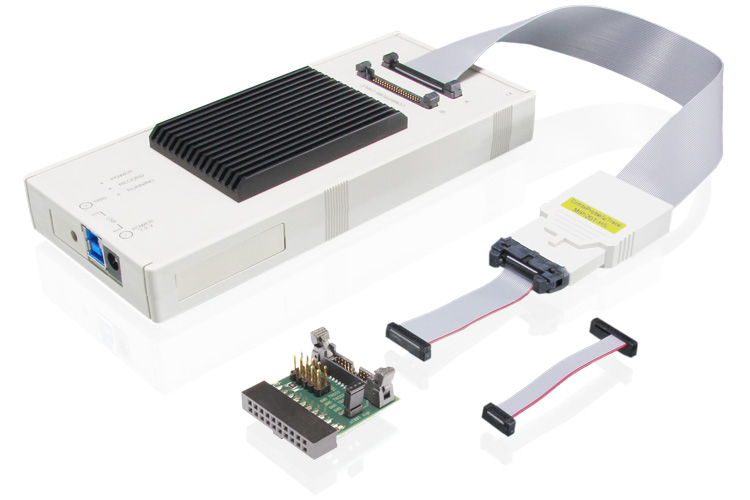

Package for uTrace for Cortex-M
OVERVIEW
Package for uTrace for Cortex-M
Product number:
LA-4532
Out of production
Supports 5-pin standard JTAG, cJTAG and
Serial Wire Debug Port for Arm Cortex-M cores
Bandwidth of 400 MBit/s per trace channel
includes 256-MByte of trace RAM to support:
- ITM via Serial Wire Output/TPIU
- ETM Cortex-M continuous mode via TPIU (4-bit)
Trace Streaming up to 100 MByte/s requires
USB 3.0 (SuperSpeed) capable host computer
Concurrent debugging of two or more
Cortex-M cores requires a
License for Multicore Debugging uTrace (LA-4534X)
This product is discontinued and not available for purchase.
Superseded by LA-3204 MicroTrace for Cortex-M (PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
LA-4513
Add-ons
Extend the Package for uTrace for Cortex-M
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
