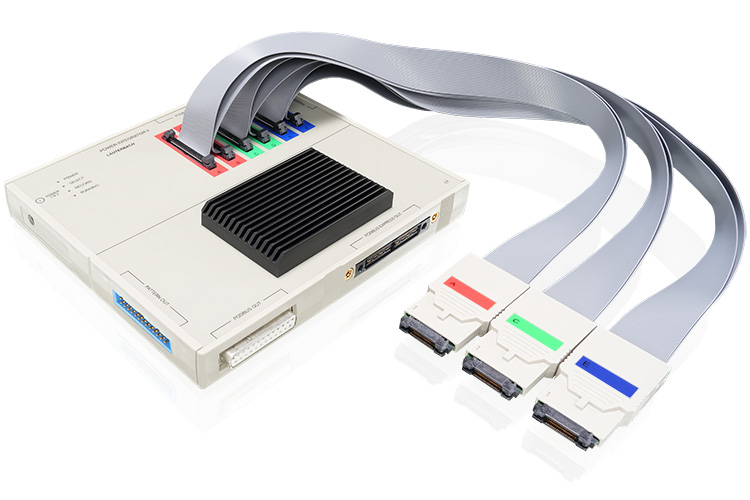

PowerIntegrator II Logic Analyzer 4 GByte
PowerIntegrator II Logic Analyzer 4 GByte
State-Timing Analyzer to record digital or analog signal
via suitable probes.
Records up to 102 (51) channels,
200 (400) MHz state, 250 (500) MHz timing,
transient recording,
256 MFrames, 48-bit time-stamp,
trigger, filter, trigger Delay, etc.
This is an extension that attaches to an existing PowerDebug X51,
PowerDebug X50, PowerDebug PRO, or PowerDebug II.
Available probes:
LA-7945 Standard Probe (17 digital single-ended signals)
LA-7944 Mictor Probe (34 digital single-ended signals)
LA-7946 Samtec Probe (34 digital single-ended signals)
LA-7947 Mictor Differential Probe (17 digital differential signals)
LA-7954 Mictor Probe with differential clock (32 se + 1 diff signal)
LA-7958 Samtec Probe with differential clock (32 se + 1 diff signal)
LA-7961 USB2 Probe
LA-7943 DigRF Probe Set
LA-7949 Analog Probe
Technical Information
Technical Data
INCLUDED PRODUCTS:
Required Modules for PowerIntegrator II Logic Analyzer 4 GByte
One of the following modules is required
Extend the PowerIntegrator II Logic Analyzer 4 GByte
Available Converters
- LA-7947 Mictor Probe for PowerIntegrator DIFFERENTIAL
- LA-7946 Samtec Probe for PowerIntegrator
- LA-7955 PowerIntegrator Adapter SODIMM SDRAM
- LA-7949 Analog Probe for PowerIntegrator
- LA-7958 Samtec Probe for PowerIntegrator DIFFCLOCK
- LA-7945 Standard Probe for PowerIntegrator
- LA-7956 PowerIntegrator Adapter SODIMM DDR 400MHz
- LA-7957 PowerIntegrator Adapter SODIMM DDR2 400MHz
- LA-7959 PowerIntegrator Adapter to ESICON
- LA-7954 Mictor Probe for PowerIntegrator DIFFCLOCK
- LA-7944 Mictor Probe for PowerIntegrator
