Preproc. for Nios II AUTOFOCUS II

OVERVIEW

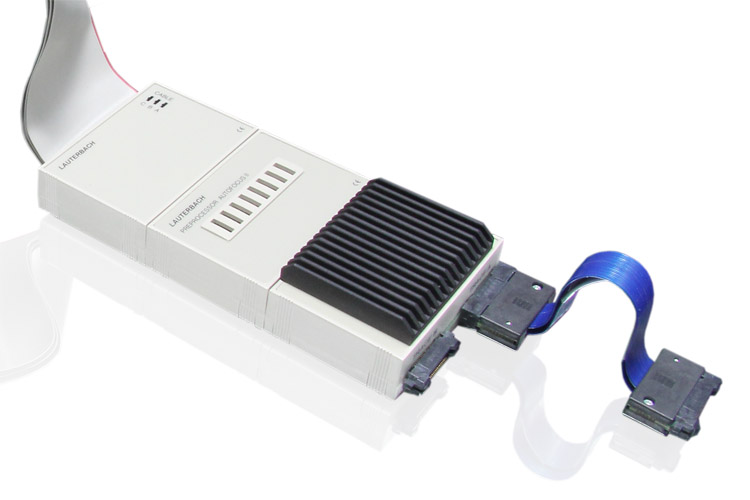

Preproc. for Nios II AUTOFOCUS II

Product number: LA-3917

Preprocessor for Real-Time Trace of Nios II

Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,

Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector

Requires PowerTrace Version 6 or higher
or PowerTrace II / III

Product Details

Technical Information

Technical Data

INCLUDED PRODUCTS:

Name
Order Number Order No.
Information
Add-ons

Extend the Preproc. for Nios II AUTOFOCUS II

Allowed Licenses

The following licenses can be added to the product to support debug and/or tracing of other core architectures.
