JTAG Debugger for Intel® x86/x64 (ICD)
OVERVIEW
JTAG Debugger for Intel® x86/x64 (ICD)
Product number:
LA-3776
Out of production
Supports Intel® Atom™ cores,
and Intel® Core i3,i5,i7
(32-bit and 64-bit)
Multicore debugging included
includes software for Windows, Linux and MacOSX
requires Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or Power Debug PRO

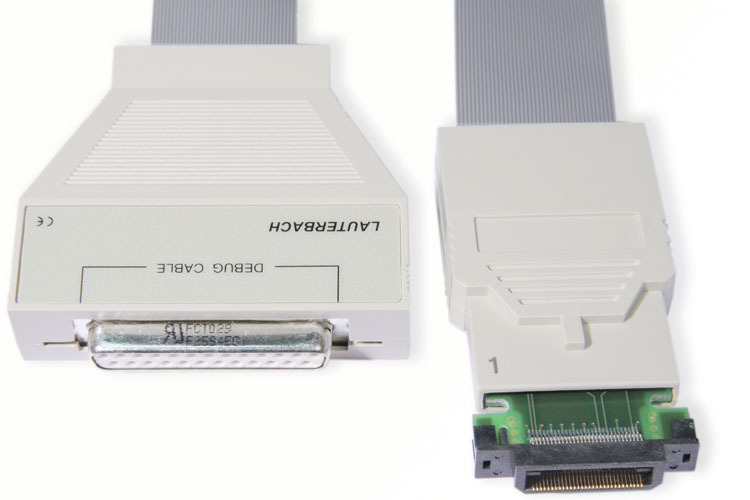

debug cable with 60-pin XDP connector
This product is discontinued and not available for purchase.
Superseded by LA-4616 Package QP Intel x86/x64 Single MIPI60-Q Long
Superseded by LA-3085 CombiProbe 2 for Intel® MIPI60C (Short)(PACK)
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for Intel® x86/x64 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3778A JTAG Debugger License for APS Add.
- LA-3750A Debug License for ARC® Add.
- LA-7848A JTAG Debugger for M8051EW Add.
- LA-3760A Debug License for Xtensa® Add.
- LA-3970X Trace Lic. for Intel® Processor Trace (COB)
- LA-3844A JTAG Debugger for TeakLite-4 Add. (ICD)
- LA-3774A JTAG Debugger for TeakLite III Add. (ICD)
