JTAG Debugger for MPC86xx (ICD)
OVERVIEW
JTAG Debugger for MPC86xx (ICD)
Product number:
LA-3735
Out of production
supports (1.8V - 5.0V) MPC8641, MPC8641D and MPC8610
Concurrent debugging of both cores in dual-core chip requires a
License for Multicore Debugging (LA-7960X)
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
requires Power Debug Module

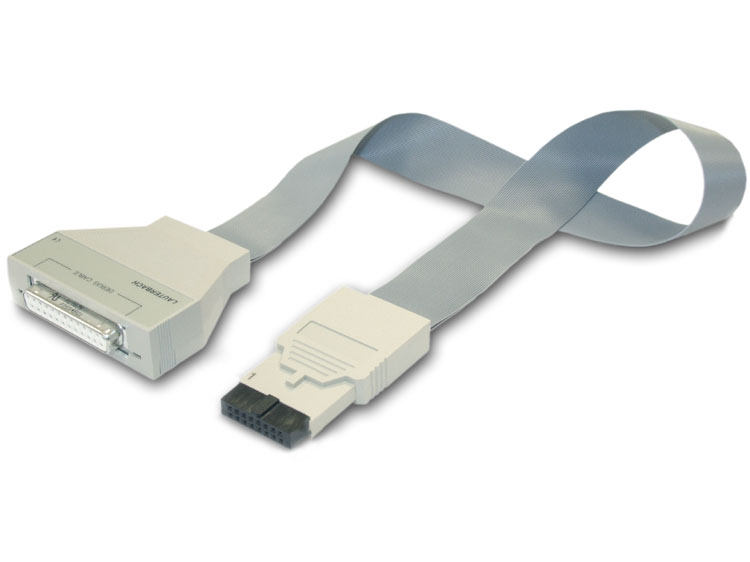

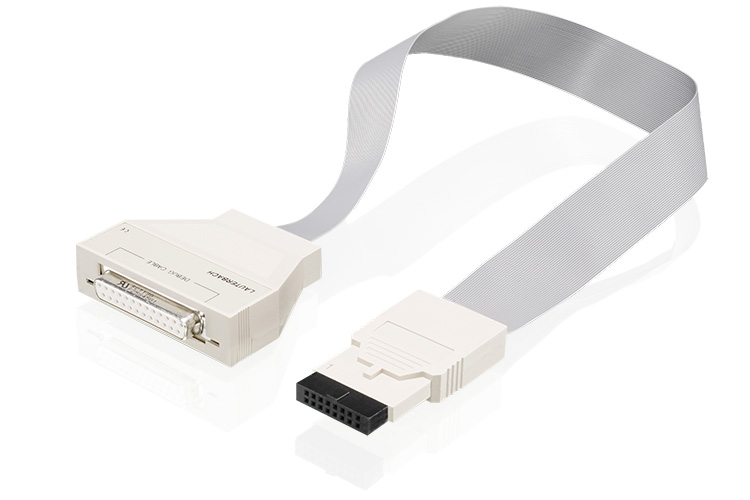

debug cable with 16 pin connector
This product is discontinued and not available for purchase.
LA-3297 PPCCOP Debug Probe with MPC86xx License
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for MPC86xx (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7721X PPC603 Debug License Ext. (tool locked)
- LA-7719X MPC74xx Debug License Ext. (tool locked)
- LA-7734X MPC51xx/MPC52xx Debug Lic. Ext. (tool locked)
- LA-7960X License for Multicore Debugging (tool locked)
- LA-3794X QorIQ 64-Bit Debug License Ext. (tool locked)
- LA-3796X MPC85XX/QorIQ-e500 Debug Lic.Ext(tool locked)
- LA-3795X QorIQ 32-Bit Debug License Ext. (tool locked)
- LA-7729X MPC82xx/MPC83xx Debug Lic. Ext. (tool locked)
