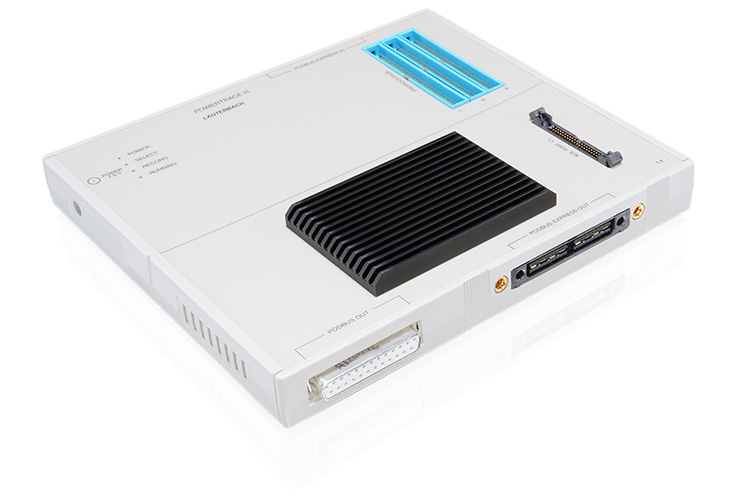

PowerTrace III 8 GigaByte
OVERVIEW
PowerTrace III 8 GigaByte
Product number:
LA-2520
Universal Trace Port Recorder
with 8 GigaByte trace memory
and a streaming rate up to 400 MByte/s.
Supports parallel trace for up to 36 signals via a suitable preprocessor
with the following maximum recording speed:
600+ Mbit/s per signal for 17 signals,
350 Mbit/s per signal for 36 signals.
Supports serial trace for up to 4 lanes via a serial preprocessor
with the following maximum recording speed:
6.25 Gbit/s per lane for 3 lanes,
5.00 Gbit/s per lane for 4 lanes.
Requires a suitable trace preprocessor or Nexus Adapter.
Requires PowerDebug X51/X50, PowerDebug PRO, or PowerDebug II.
Requires TRACE32 software DVD 2021/02 or newer.
Can be extended with a Mixed-Signal-Probe (LA-2500).
