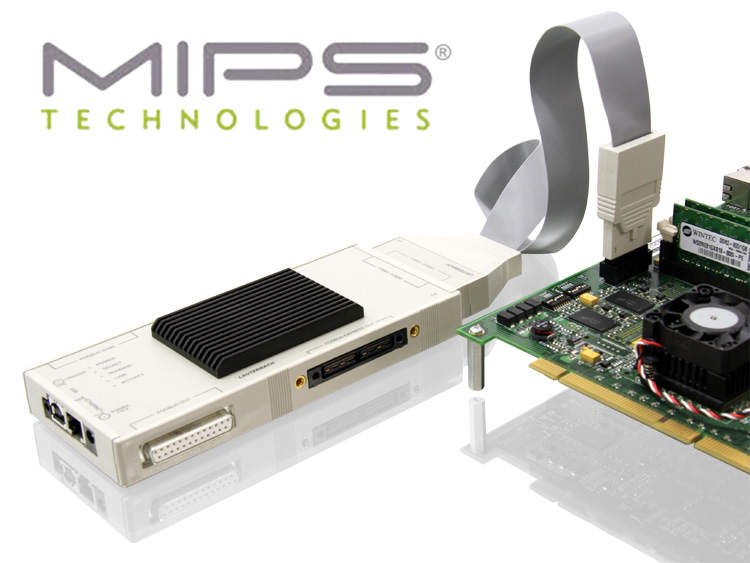

JTAG Debugger for MIPS32 (ICD)
OVERVIEW
JTAG Debugger for MIPS32 (ICD)
Product number:
LA-7760
Support for MIPS32 4Kp, 4Km, 4Kc derivatives
and LEXRA LX4280

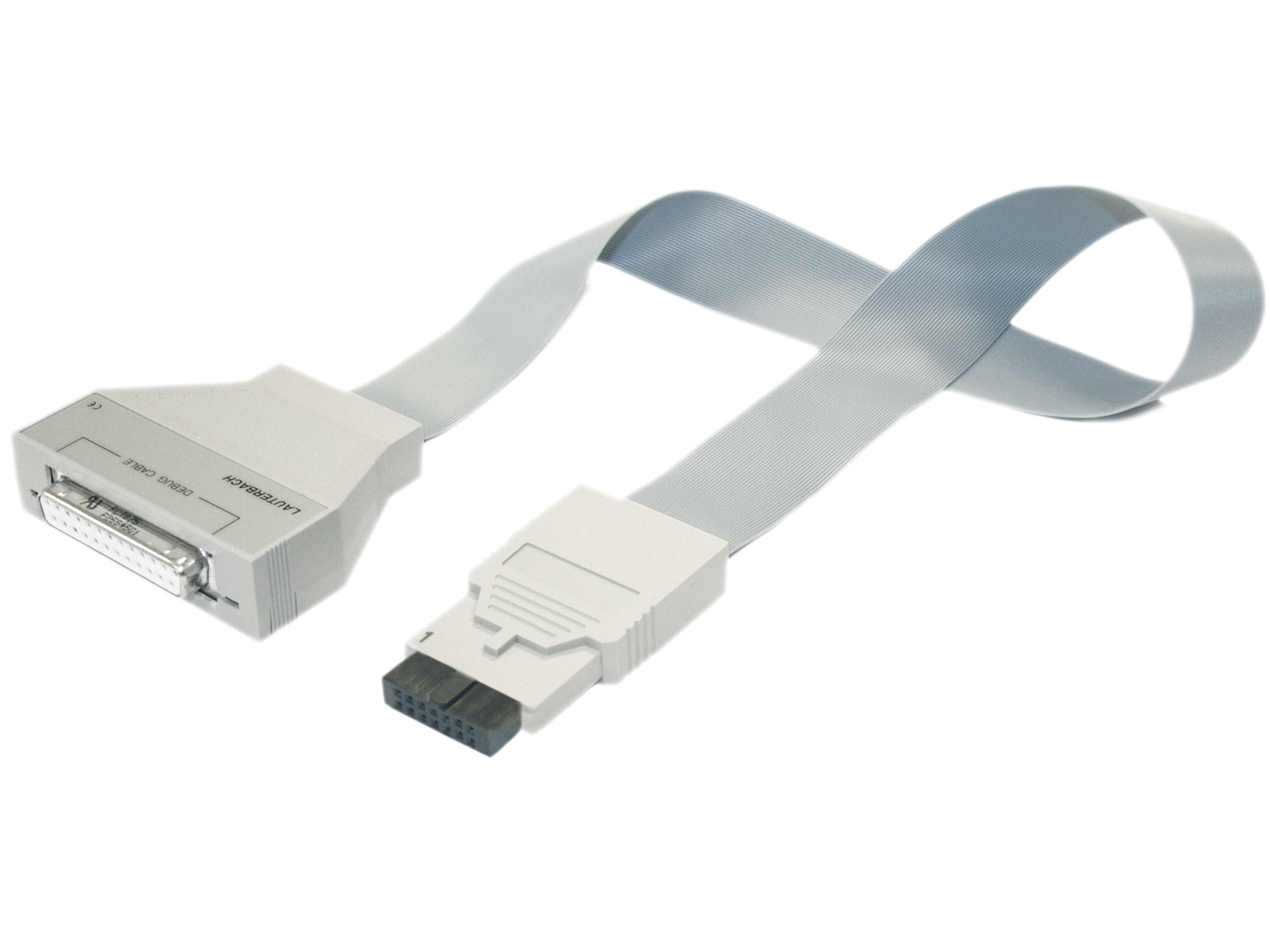

via a 14 pin MIPS debug cable.
Includes TRACE32 software for Windows, Linux and macOS
on DVD or via download.
Requires Power Debug Module.
For MIPS IP based on RISC-V, you require a RISC-V probe
instead (LA-3200 or LA-3201).
Product Details
Technical Information
Technical Data
Add-ons
Extend the JTAG Debugger for MIPS32 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-3743A Armv8/v9-A/R Debug License (Nodelocked)
- LA-3750A ARC® 32-bit Debug License (Nodelocked)
- LA-7848A M8051EW Debug License (Nodelocked)
- LA-7971X Trace License for MIPS32
- LA-7960X License for Multicore Debugging
- LA-7746A ARM7 Debug License (Nodelocked)
- LA-7761A MIPS64 Debug License (Nodelocked)
- LA-3760A Xtensa® Debug License (Nodelocked)
- LA-7844A Cortex-M Debug License (Nodelocked)
- LA-7742A ARM9 Debug License (Nodelocked)
- LA-7843A Armv7-A/R Debug License (Nodelocked)
- LA-7774A JTAG Debug. for Teak/TeakLite JAM 20 Add.
- LA-3844A JTAG Debugger for TeakLite-4 Add. (ICD)
- LA-7765A ARM11 Debug License (Nodelocked)
- LA-3774A TeakLite-III Debug License (Nodelocked)
