Preproc. for RISC-V AUTOFOCUS II
OVERVIEW
Preproc. for RISC-V AUTOFOCUS II
Product number:
LA-3927
Out of production

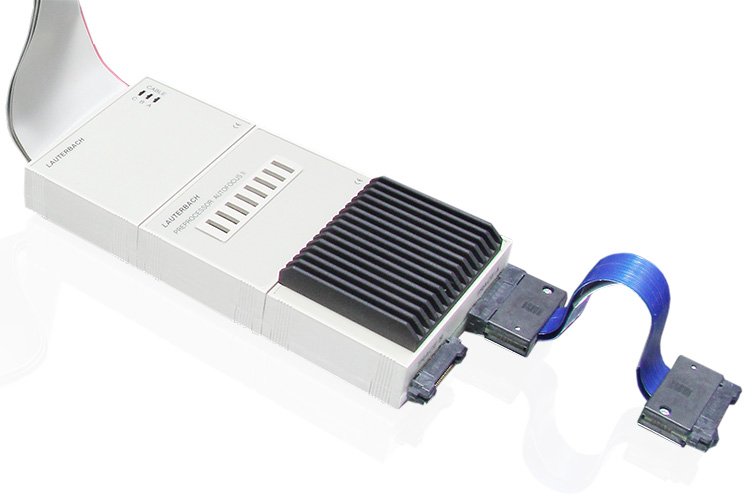

Preprocessor for Trace RISC-V
tested for SiFive Nexus IP
tested for UltraSoc Trace Encoder IP
other IP on request
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Voltage: 1.2 to 3.3V - else contact support
Traceport: 1-32bit
Bandwidth: 9.6 Gbps (300MHz clock speed, DDR)
Connector: 2x38 pin mictor connector
Requires PowerTrace Version 6 or higher
or PowerTrace II / III
This product is discontinued and not available for purchase.
LA-3300 Trace for RISC-V via AutoFocus II (PACK)
HS-Code / Tariff-Code: 90318080
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
