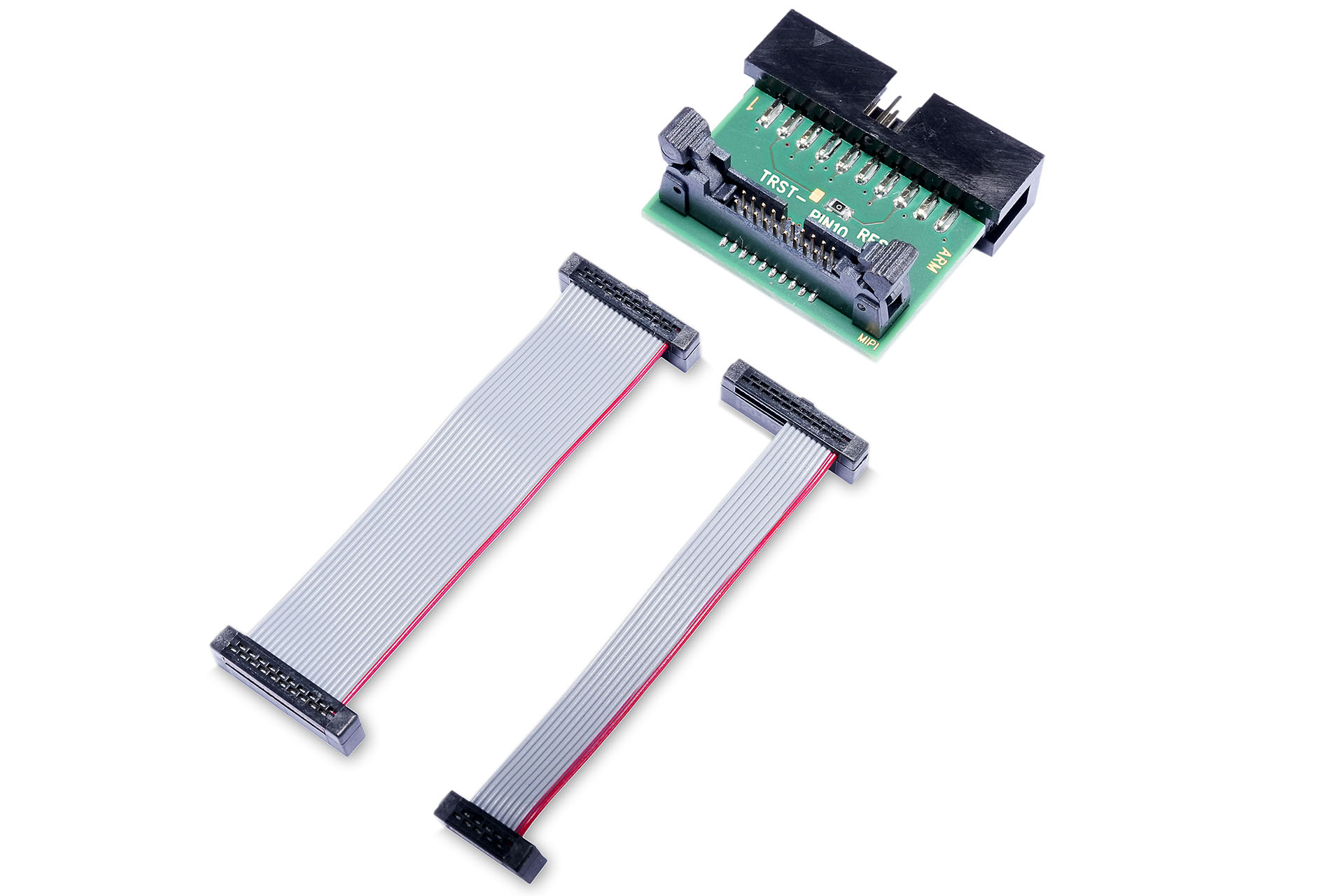

Converter IDC20A to MIPI-10/20T
OVERVIEW
Converter IDC20A to MIPI-10/20T
Product number:
LA-2729
New Product

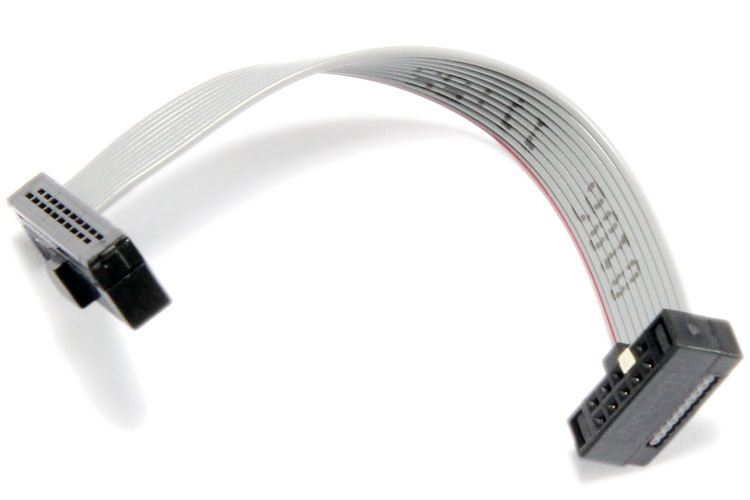

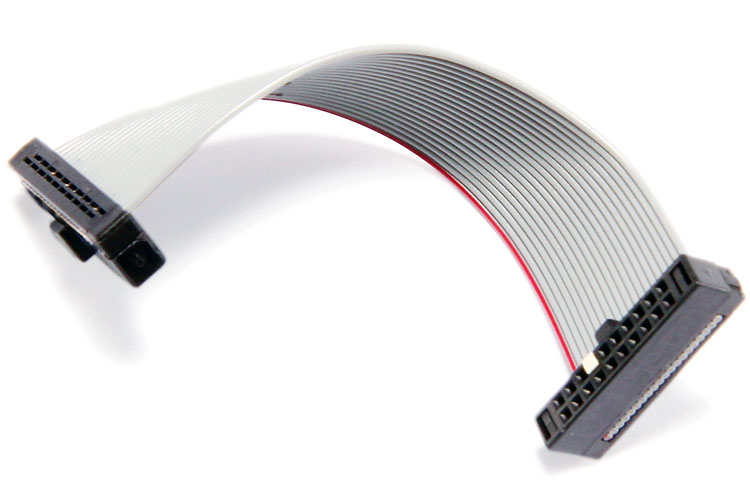

Converter from an IDC20A debug connector to a MIPI10 or
MIPI20T connector. It is designed to connect the Lauterbach
IDC20A Debug Probe to a MIPI10 or MIPI20T connector on the target.
For a board with a MIPI20D connector (with TRST and RTCK)
you require converter LA-3770 instead.
Find out about the difference between the two converters at
https://support.lauterbach.com/kb/articles/la-2729-vs-la-3770
Note: This converter does not connect the trace pins of a
CoreSight MIPI20T connector since they are not used by
IDC20A debug cables. Whereas tracing via SWO/SWV is supported.
This product can be ordered now.
