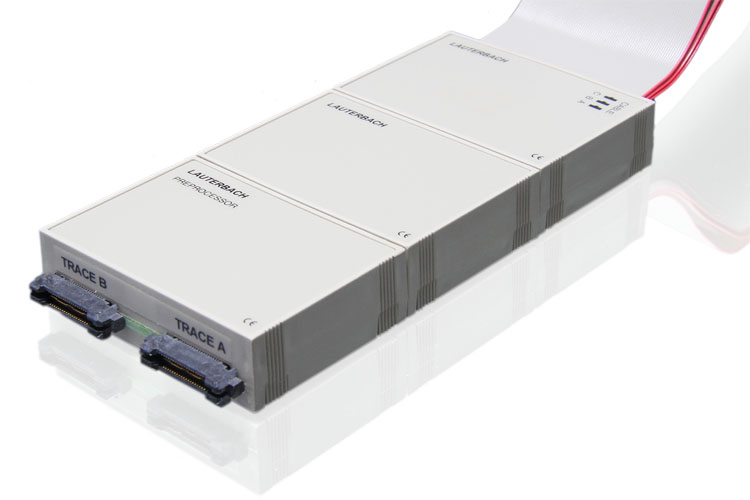

Preprocessor for ARM-ETM with AUTOFOCUS Flex
OVERVIEW
Preprocessor for ARM-ETM with AUTOFOCUS Flex
Product number:
LA-7991
Out of production
Preprocessor for ARM/Cortex
Embedded Trace Macrocell (ETM),
Program Trace Macrocell (PTM),
Connector cable and software,
350 MHz clock speed, 4 x Trace-Depth,
Variable threshold level and termination voltage,
AUTOFOCUS self calibration technology,
Support all ETM modes, with 2 MICTOR connectors,
Supports 1.8 to 3.3V - else contact support
Requires PowerTrace/Ethernet Version 6 or higher
or PowerTrace II / III
Support max. 32 bit trace port size for ARM11
This product is discontinued and not available for purchase.
Superseded by LA-3308 Trace for Arm-ETM via AUTOFOCUS II (PACK)
Superseded by LA-3311 Trace for Arm-ETM via AUTOFOCUS II MIPI(PACK)
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the Preprocessor for ARM-ETM with AUTOFOCUS Flex
Available Converters
- LA-3814 ETMv3 Conv. Mictor-38/MIPI-34 to MIPI-60
- LA-3816 Converter 2x Mictor-38 to MIPI-60
- LA-3812 Conv. OMAP4 2xMic38/IDC20A/MIPI34 to MIPI60
- LA-3813 OMAP3 Conv. Mictor-38, MIPI-34 to Mictor-38
- LA-3810 U8500 Conv. 2x Mictor38, 3x MIPI34 to MIPI60
- LA-3818 Converter 2xMictor38/IDC20A to MIPI-60
- LA-3768 ETMv1 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
- LA-3809 Converter Mictor-38/IDC20A to MIPI-20T
- LA-3769 Conv. Mictor-38, 2x MIPI-34 to MIPI-60
