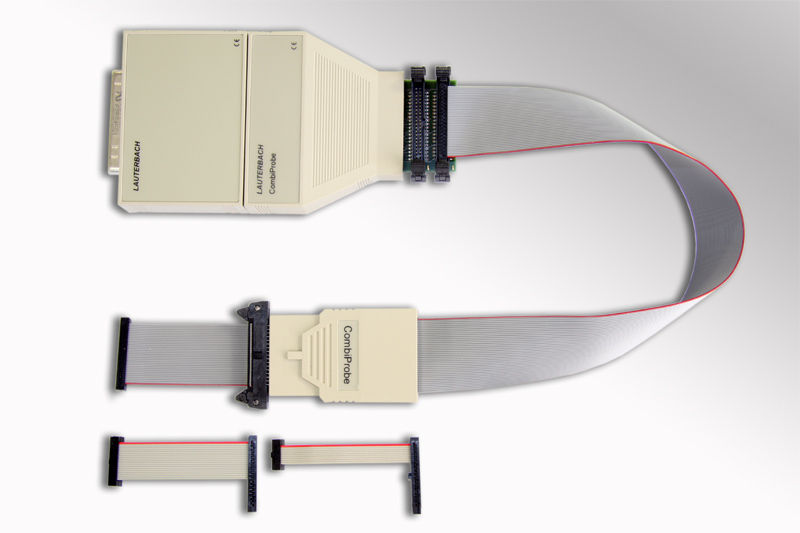

CombiProbe C166V2-Debugger and 4-Bit Trace
OVERVIEW
CombiProbe C166V2-Debugger and 4-Bit Trace
Product number:
LA-4506
On request, please contact Lauterbach
supports C166 V2
Debug cable and 128-MByte of trace memory
requires the following A-license:
LA-7759A (OCDS Debugger for C166S V2)
optional
LA-7789A (JTAG Debugger for OAK/Teaklite-SEIB Add.)
MCDS program flow trace requires:
LA-7975X (Off-Chip Trace for MCDS of C166S-V2)
requires Power Debug Interface USB 2.0/USB 3.0,
Power Debug Ethernet, PowerTrace, Power Debug II
or Power Debug PRO
5V tolerant inputs; max. output level 3.3V
This product has limited availability. Please contact local office.
Product Details
Technical Information
Technical Data
INCLUDED PRODUCTS:
Name
Order Number
Order No.
Information
Add-ons
Extend the CombiProbe C166V2-Debugger and 4-Bit Trace
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
