JTAG Debugger for MPC85XX/QorIQ e500 (ICD)
OVERVIEW
JTAG Debugger for MPC85XX/QorIQ e500 (ICD)
Product number:
LA-3796
supports PowerQuiccIII (MPC85XX) and
QorIQ 32-bit with e500 core
(P10XX, P2010, P2020, BSC9xxx)
includes software for Windows, Linux and MacOSX
requires Power Debug Module

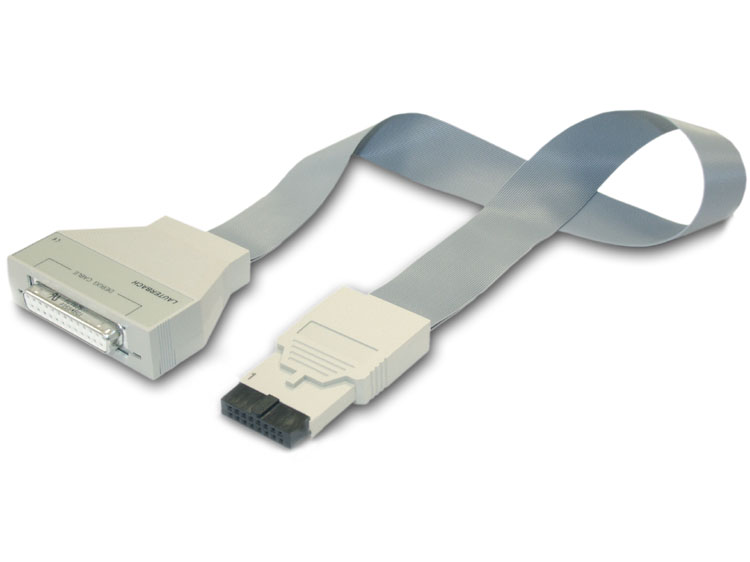

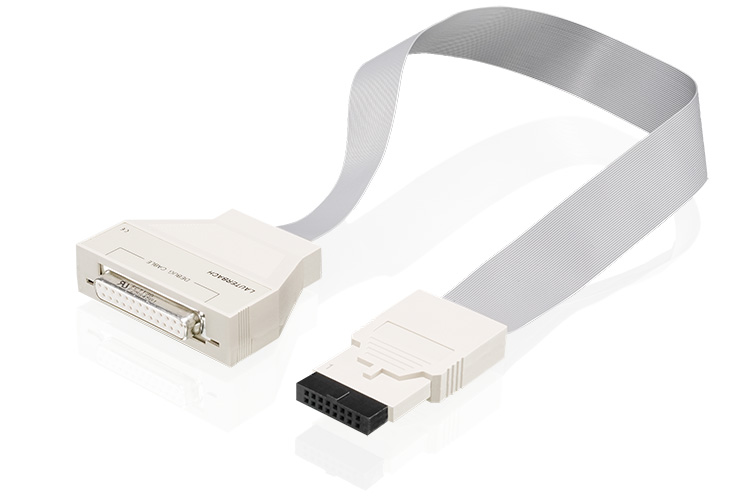

debug cable with 16 pin connector
Concurrent debugging of two or more cores
in multicore chip requires a
License for Multicore Debugging (LA-7960X)
Add-ons
Extend the JTAG Debugger for MPC85XX/QorIQ e500 (ICD)
Allowed Licenses
The following licenses can be added to the product to support debug and/or tracing of other core architectures.
- LA-7721X JTAG Debugger Extension for PPC603(ICD)
- LA-7719X JTAG Debugger Extension for MPC74xx (ICD)
- LA-7734X JTAG Debugger Extension for MPC5200/MPC512x
- LA-7960X License for Multicore Debugging
- LA-3794X JTAG Debugger Ext. QorIQ PowerPC 64-Bit
- LA-3795X JTAG Debugger Ext. for QorIQ PowerPC 32-Bit
- LA-7729X JTAG Debugger Extension for MPC82xx/MPC83xx
- LA-3735X JTAG Debugger Extension for MPC86xx
