STRED Debugger
  Highlights
Full high-level and assembler debugging
Full onchip breakpoint support
Multicore debugging
Fully scriptable
Support for MSR1


Order
Order
Information
Support
Technical Support




TOP

STRED Ecosystem


Supported Compilers
Compiler Support

C

  • GCC (GNU)
  • ELF

TOP

Hardware-based Debugger


The STRED is usually debugged as part of an Cortex-M-based multicore chip. In these cases, it is sufficient to extend the TRACE32 Cortex-M Debug Cable by a STRED A-license. However, it is also possible to debug a pure STRED chip.

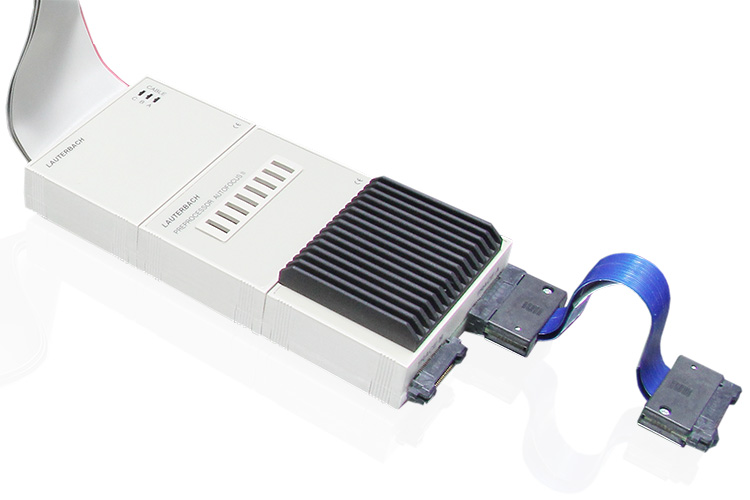

Debug Cable for STRED Architecture


TOP

TRACE32 Debug Features


Multicore Debugging
  • Debugger for all cores of a multicore chip
  • Debugging of application cores, DSPs, accelerator cores and special-purpose cores
  • Debugging of more than 80 core architectures
  • Support for every multicore topology
  • Support for all multicore operation modes
  • Support for AMP and SMP systems
  • Single debug hardware can be licensed for all cores of a multicore chip

High-Level-Language Debugging
  • Supports multiple languages
  • Full support for C++
  • Integrated into TRACE32 environment
  • Supports most compilers and hosts
  • Same user interface on different hosts
  • High speed download
  • Debugs optimized code
  • Display of function nesting
  • Display of linked lists
  • Powerful expression evaluation

Sample-based Profiling
  • Long-time performance analysis for functions
  • Long-time performance analysis for tasks
  • Long-time analysis of the contents of a variable or memory location and more

Script Language PRACTICE
  • Structured Language
  • Menu Support
  • Command Logs
  • Custom Menues
  • Custom Toolbars and Buttons
  • Custom Dialog Windows
  • 64-Bit Arithmetic
  • Numeric, Logical and String Operators
  • Direct Access to System States


TOP

Details and Configurations



STRED
MSR1    Debugger and On-chip Trace    STMicroelectronics
MSR1    CombiProbe    STMicroelectronics
MSR1    Debugger and Off-chip Trace    STMicroelectronics
