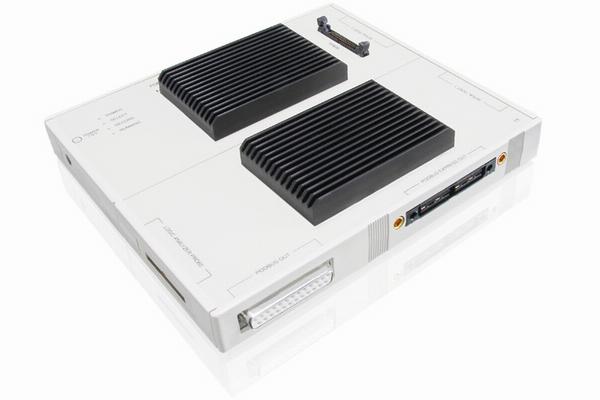

Serial Trace Port Controller with 4 Giga Byte Trace Memory for ARC Real-Time Trace (ARC RTT) requires PowerDebug II Ethernet or PowerDebug PRO Host requirements: USB 3.0 or 1000 MBit Ethernet interface, 4.0 GigaByte RAM voltage range 0.15V to 1.25V

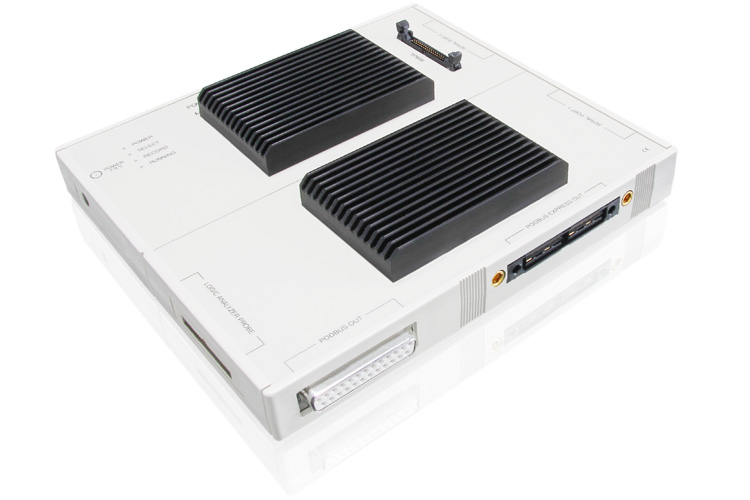

Trace recorder for serial high-speed ports with 4 Gigabyte trace memory and support for optional Analog Probe or Logic Analyzer Probe. This TRACE32 product is a license carrier. It requires a suitable, programmed TRACE32 A-license. Requires PowerDebug X50, PowerDebug PRO, or PowerDebug II. Requires PC with USB 3 or Gigabit Ethernet, 4 GB RAM min, and 64-bit OS. Voltage range: 0.15 to 1.25 differential Voltage. Optional Analog Probe: LA-7949 Optional Logic Analyzer Probe: LA-7945

Allows to decode Intel Processor Trace recorded to SDRAM or PowerTrace II please add the serial number of the preprocessor to your order AUTOFOCUS II Preprocessors with serial number C0806xxxxxx and lower have to be send to Lauterbach Germany for an hardware upgrade

Floating license to use the TRACE32 Instruction Set Simulator for automated tests via script language PRACTICE or via the TRACE32 Remote API Supports MicroBlaze For Windows, Linux, and macOS. Floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

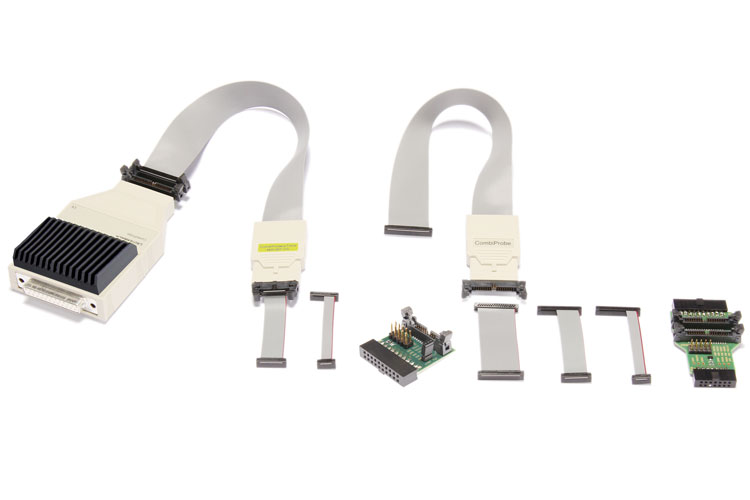

Preprocessor for ARC Real-Time Trace (ARC RTT) Connector cable and software, 600 MHz clock speed, 8,16,32 Bit Trace Port width, Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Supports 1.2 to 3.3V - else contact support Requires PowerTrace Version 6 or higher or PowerTrace II / III

Preprocessor for Real-Time Trace of C64x+ Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 60 pin Samtec connector (MIPI) Requires PowerTrace Version 6 or higher or PowerTrace II / III

Preprocessor for Real-Time Trace of C6x core Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 2x38 pin mictor connector Requires PowerTrace Version 6 or higher or PowerTrace II / III

Debug cable and 512 MByte of trace memory Supports Standard-JTAG, cJTAG and Serial Wire Debug Port Bandwidth of 400 MBit/s per trace channel requires at least one of the following A-licenses: LA-3743A Debug. for Cortex-A/R (Armv8 and Armv9) Add. LA-7742A (JTAG Debugger License for ARM9 Add.) LA-7746A (JTAG Debugger License for ARM7 Add.) LA-7765A (JTAG Debugger License for ARM11 Add.) LA-7843A (JTAG Debugger License for CORTEX-A Add.) LA-7844A (JTAG Debugger License for CORTEX-M Add.) Trace support (up to 4-bit) included: - MIPI System Trace - ITM via Serial Wire Output/TPIU - ETM Cortex-M continuous mode via TPIU Supports the following trace licenses: LA-7970X (Trace License for the ARM Architecture) requires Power Debug Interface USB 3.0, Power Debug II or Power Debug PRO 5V tolerant inputs; max. output level 3.3V

Trace Support for RH850 please add the serial number of the existing serial preprocessor or the PowerTrace Serial to your order

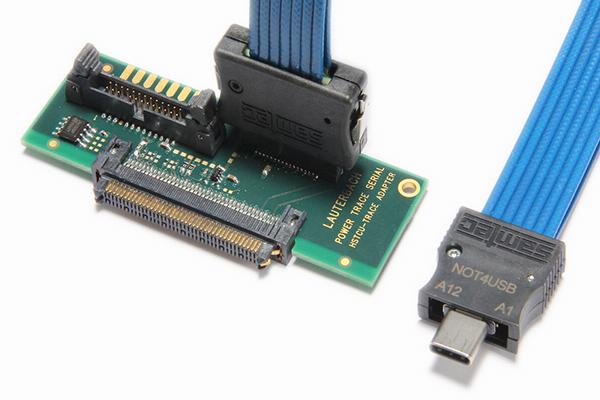

Adapter for PowerTrace Serial SERIAL PORT 1 (80-pin) to support Tricore AURIX AGBT trace via HSTCU
