Search results for "microtrace"

TRACE32 Front-End connecting to - GTL Back-End supports VSPA floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

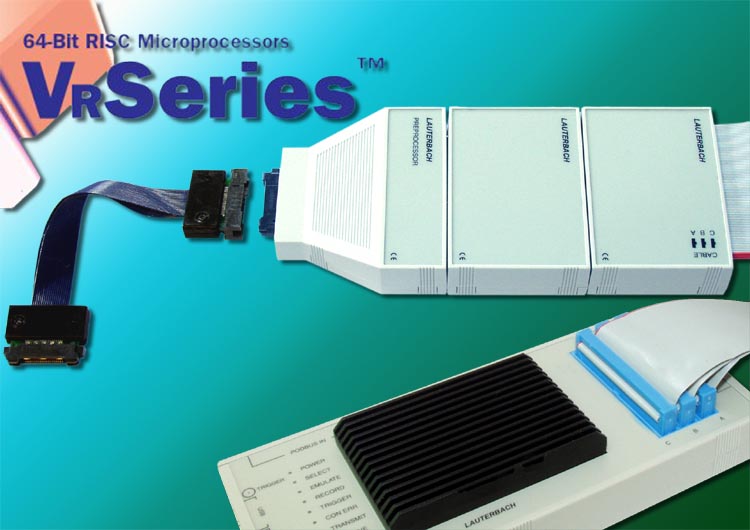

Preprocessor for VR with TRCU, 200 MHz clock speed, normal trace depth, support 4 and 16 bit bus width Mictor connector to target requires LA-7938 if KEL connector is used on the target voltage range 1.8V to 5.5V

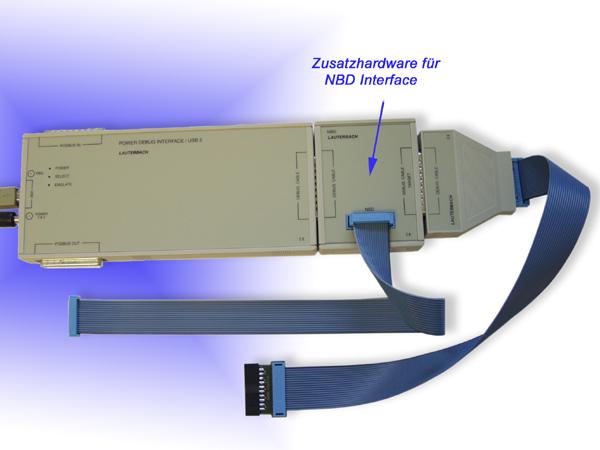

NBD Interface support for V850 allows real-time-memory access to target memory Placed between Power Debug Module and Debug Cable 16 Pin/100 mil connection to target Requires: PowerDebugUSB 2, PowerDebug Ethernet or PowerTrace

supports RISC-V 32-bit cores Multicore debugging included only suitable for debug cables newer than 08/2008 includes software for Windows, Linux and macOS requires TRACE32 software R.2020.09

TRACE32 Front-End connecting to - third-party target server such as GDB supports the 68K/ColdFire architecture floating license via RLM (Reprise License Manager) Please add the RLM HostID of the license server to your order (please see our FAQ)

TRACE32 Verilog Back-End for Hexagon for RTL Simulations when the VPI interface is supported support for JTAG access Requires RLM floating license server Please add the RLM HostID of the license server to your order (please see our FAQ)

TRACE32 Verilog Back-End for Cortex-M for RTL Simulations when the VPI interface is supported support for JTAG access Requires RLM floating license server Please add the RLM HostID of the license server to your order (please see our FAQ)

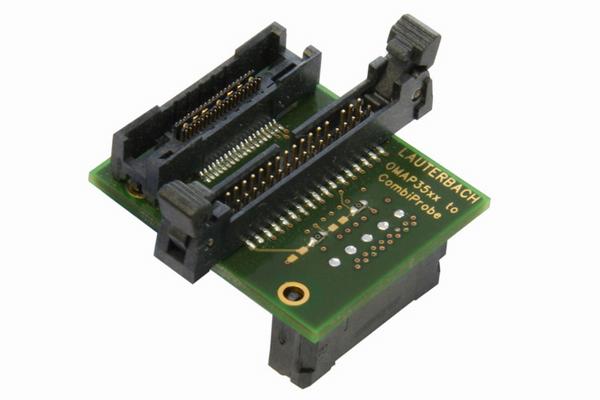

Converter to connect an ARM Preprocessor and a CombiProbe to a Mictor connector on the target. This converter is designed for the OMAP3503 board from Spectrum Digital. The upper ETM signals on the Mictor can alternatively be used for system trace (SDTI).

Serial preprocessor for C6000 with HSSTP Connector cable and software Supported maximum speed per lane: 4 lanes @ 5.00Gbps 3 lanes @ 6.25Gbps 2 lanes @ 6.25Gbps 1 lane @ 6.25Gbps Requires PowerTrace II / III voltage range 0.15V to 1.2V

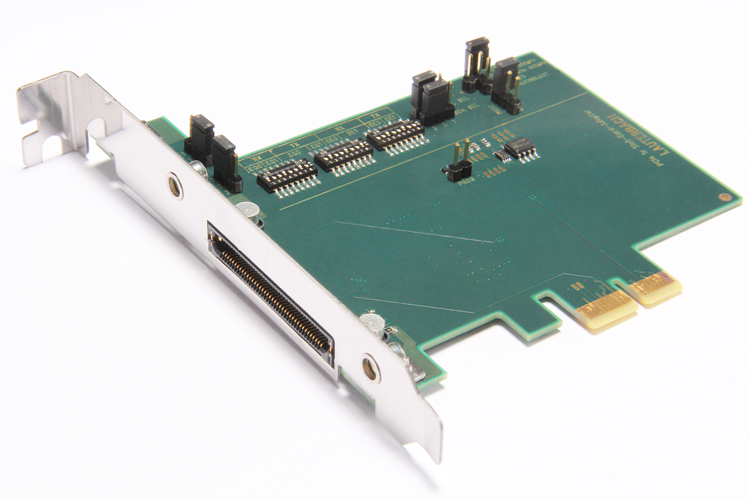

Active slot card adapter for up to 1-lanes PCIe Converts standard PCIe slot card format to 80pin ERF8 for PowerTrace Serial requires LA-1239 Flex Ext. for SAMTEC 80 pin ERM8-ERM8 series Pinout conform to PCI-Express x1 Connector Pin-Out
