Supports Aurora trace port for QorIQ PowerPC if applied to Power Trace Serial please add the serial number of the Power Trace Serial to your order

Parallel preprocessor for real-time tracing of C6000 cores via a MIPI60 connector. Includes connector cable and software. Voltage: 1.2 to 3.3V (contact support otherwise) Traceport: 1-32 bit Bandwidth: up to 600+ Mbit/s per trace signal Connector: 60 pin Samtec connector (MIPI) Variable threshold level and termination voltage, AUTOFOCUS self calibration technology Requires a PowerTrace module: PowerTrace PX / II / III (or PowerTrace Ethernet vers 6).

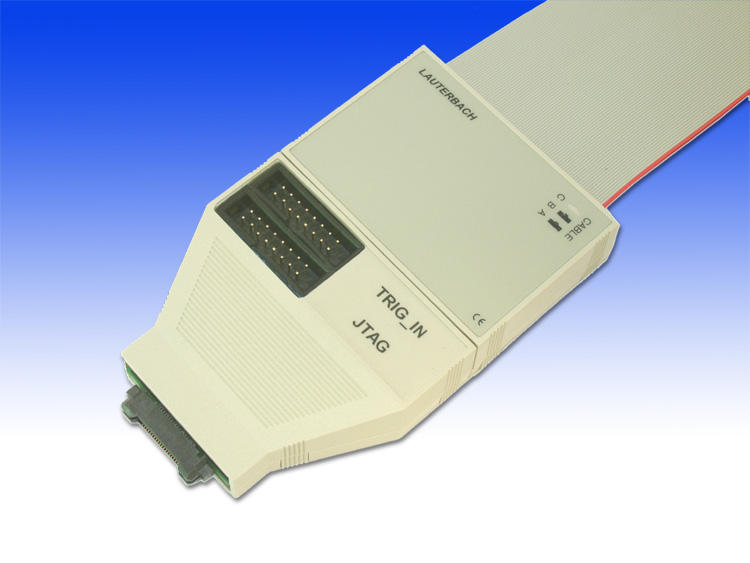

Program flow trace for PPC4xx 720 MHz clock speed, (180 MHz trace clock) 0.9-3.3V, connector cable and software Requires PowerTrace II, PowerTrace PX or PowerTrace/Ethernet Version 6 or higher requires LA-7983 Conv. 38 Pin Mictor to 20 for Preproc. PPC4xx if the target has a 20 pin male connector

Upgrade from PowerTrace II 1 GByte (LA-7692) to PowerTrace II 2 GByte (LA-7693) Upgrade has to be performed by Lauterbach

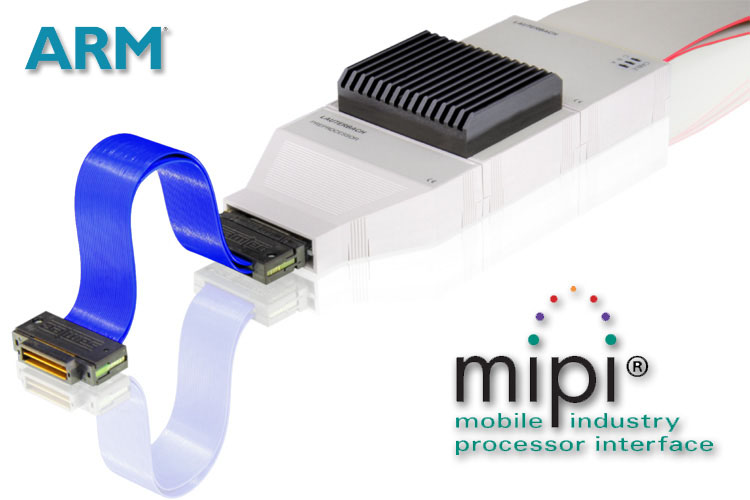

Parallel preprocessor for ARM cores Embedded Trace Macrocell (ETM), Program Trace Macrocell (PTM) Connector cable and software, Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Support all ETM modes Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 60 pin Samtec connector (MIPI) supports up to 4 trace sources (mix of TPIU and STM) Requires PowerTrace Version 6 or higher or PowerTrace II / III

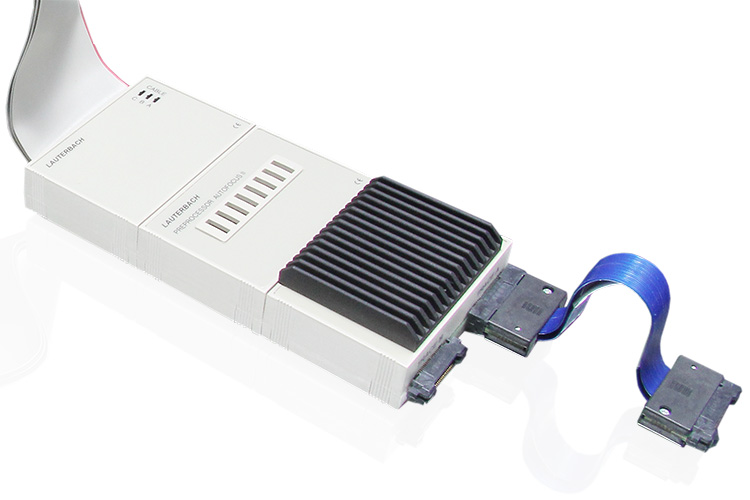

Parallel preprocessor for ARM/Cortex Embedded Trace Macrocell (ETM), Program Trace Macrocell (PTM) Connector cable and software, Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Support all ETM modes, with 2 MICTOR connectors, Voltage: 1.2 to 3.3V - else contact support Traceport: 1-32bit Bandwidth: 9.6 Gbps (300MHz clock speed, DDR) Connector: 2x38 pin mictor connector Requires PowerTrace II / III, PowerTrace PX or PowerTrace/Ethernet Version 6 or higher

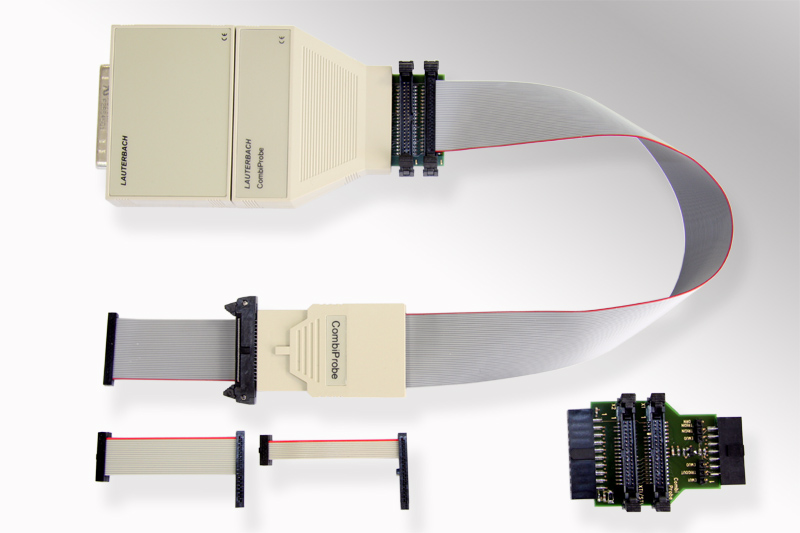

Debug cable and 128-MByte of trace memory Supports Standard-JTAG, cJTAG and Serial Wire Debug Port Bandwidth of 200 MBit/s per trace channel requires at least one of the following A-licenses: LA-7742A (JTAG Debugger License for ARM9 Add.) LA-7746A (JTAG Debugger License for ARM7 Add.) LA-7765A (JTAG Debugger License for ARM11 Add.) LA-7843A (JTAG Debugger License for CORTEX-A Add.) LA-7844A (JTAG Debugger License for CORTEX-M Add.) Trace support (up to 4-bit) included: - MIPI System Trace - ITM via Serial Wire Output/TPIU - ETM Cortex-M continuous mode via TPIU Supports the following trace licenses: LA-7970X (Trace License for the ARM Architecture) requires Power Debug Interface USB 2.0/USB 3.0, Power Debug Ethernet, PowerTrace, Power Debug II or Power Debug PRO 5V tolerant inputs; max. output level 3.3V

Supported for CoreSight Xtensa if applied to a PowerTrace Serial please add the serial number of the PowerTrace Serial to your order

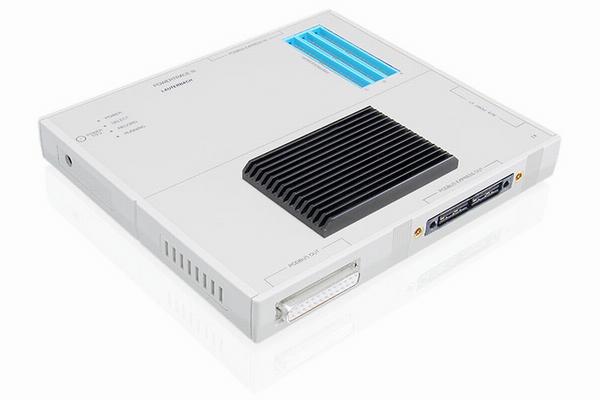

Universal Trace Port Controller, 8 Giga Byte Trace Memory requires PowerDebug II Ethernet, PowerDebug PRO or PowerDebug X50 and TRACE32 software DVD 2021/02 or newer

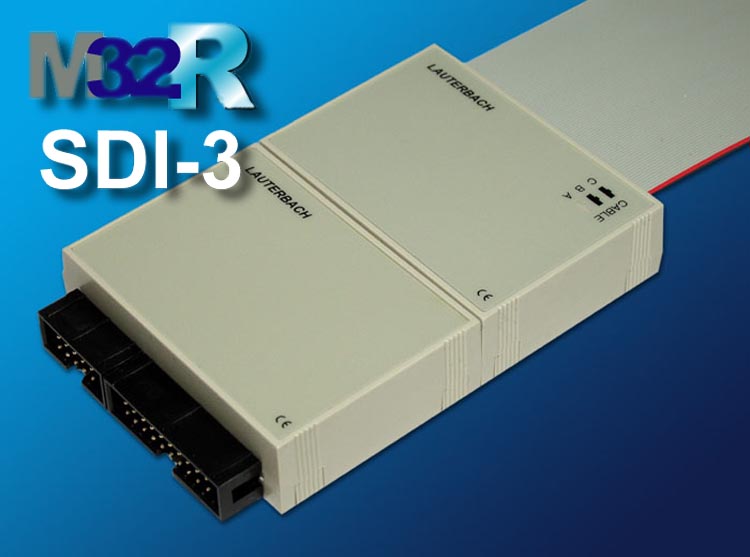

Adapter for Debug and Trace on M32R SDI-3 includes software for Windows, Linux and MacOSX only with PowerTrace Ethernet 256MB/512MB or PowerTrace PX voltage range 2.6V to 3.3V Out of production since July 2008
