debugger extension for PowerQuiccIII (MPC85XX) and QorIQ with e500 core requires a valid software guaranty or a valid software maintenance key only suitable for debug cables newer than 08/2008 please add the serial number of the existing debug cable to your order

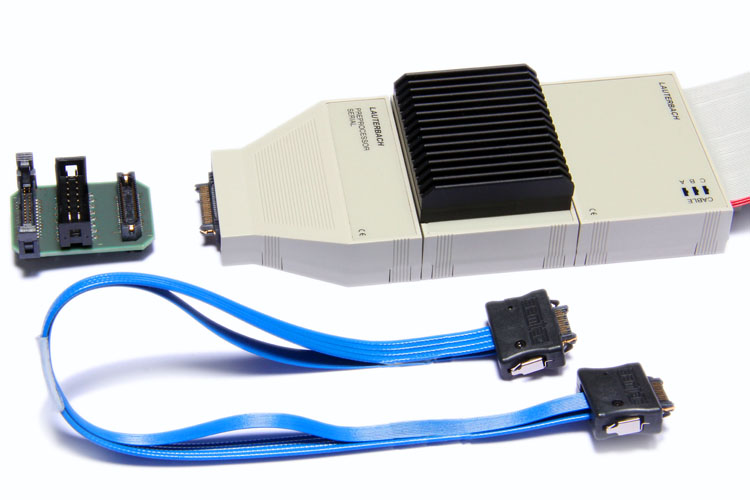

Aurora NEXUS Preprocessor for Qorivva MPC57xx/SPC5 (high-speed serial trace port) - supports reference clock output up to 3125MHz POWER TRACE II / III: full support Supported speeds per lane: 4 lanes @ 4.25Gbps 3 lanes @ 6.0Gbps 2 lanes @ 6.25Gbps 1 lane @ 6.25Gbps POWER TRACE ETHERNET or POWER TRACE PX limited support Supported speeds per lane: 4 lanes @ 1.25 GBPS 2 lanes @ 2.5 GBPS - POWER TRACE ETHERNET module must have serial number E04xxxxxxxx or higher Required converter: - Samtec34 on target requires LA-3871: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34 including Samtec 34-pin flex extension cable - Samtec22 on target requires LA-3872: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22 including Samtec 22-pin flex extension cable voltage range 0.15V to 1.25V

Support for Nexus Trace (ARC RTT) (Not required for "Small Onchip Trace" (SmaRT)) Please add the base serial number of your existing debug cable to your order.

Converter JTAG-RH850 of LA-3719 (Debugger RH850 14pin) and from AUTO26 of LA-2709 (Debugger for RH850/V850 Automotive PRO) LA-3205 (Debugger for RH850/V850 AUTO26 (PACK)) LA-3739 (Debugger RH850 Automotive) and Samtec 40 pin of LA-3943 (Preproc. RH850 HSTP HF-Flex) to Samtec ERF 34-pin RH850 pinout Includes Samtec 34-pin flex extension

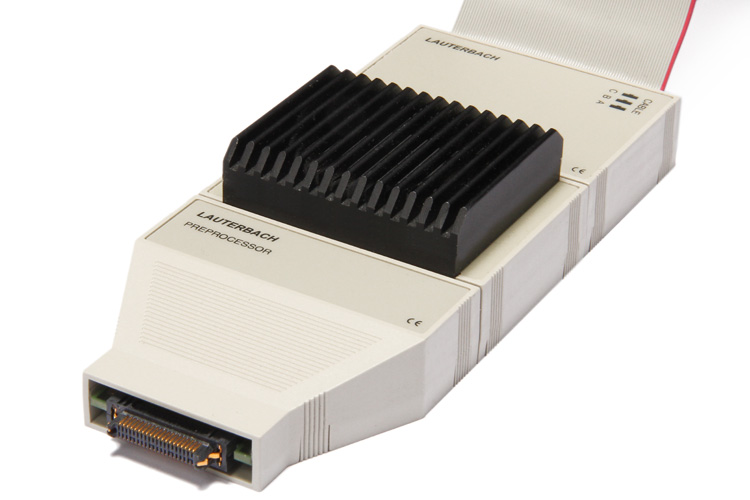

Supports RH850 parallel Nexus tracing please add the serial number of the preprocessor to your order AUTOFOCUS II Preprocessors with serial number C0806xxxxxx and lower have to be send to Lauterbach Germany for an hardware upgrade

Preprocessor for TriCore Aurora Giga-Bit Trace (Aurora high-speed trace) POWER TRACE II / III: full support Supported speeds per lane: 4 lanes @ 4.25Gbps 3 lanes @ 6.0Gbps 2 lanes @ 6.25Gbps 1 lane @ 6.25Gbps POWER TRACE ETHERNET or POWER TRACE PX limited support Supported speeds per lane: 4 lanes @ 1.25 GBPS 2 lanes @ 2.5 GBPS - POWER TRACE ETHERNET module must have serial number E04xxxxxxxx or higher voltage range 0.15V to 1.25V

supports decoding of MCDS-based trace data, on-chip and off-chip please add the serial number of the existing debug cable to your order

debugger extension for QorIQ 32-bit with e500mc cores requires a valid software guaranty or a valid software maintenance key only suitable for debug cables newer than 08/2008 please add the serial number of the existing debug cable to your order

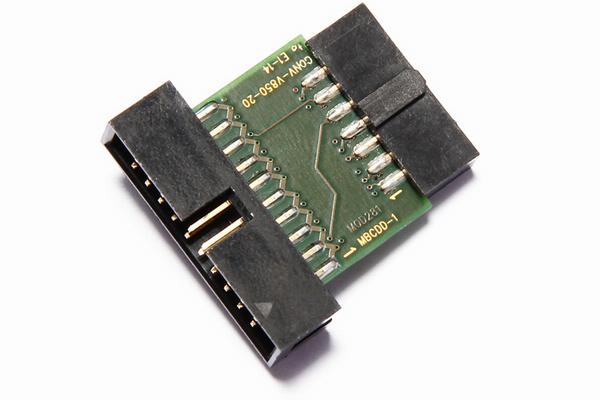

Converter V850-20 Pin to E1-14 Pin

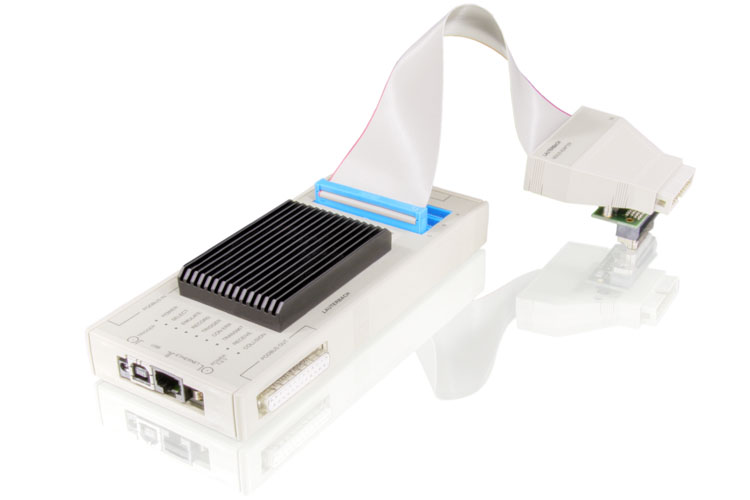

Adapter for NEXUS on Spanish Oak (MPC565), Silver Oak (MPC561) and Green Oak (MPC563) with 38 pin mictor connector includes software for Windows, Linux and MacOSX only with PowerTrace Ethernet 256MB/512MB or PowerTrace PX AMP40NS NEXUS connector requires LA-7793 AMP50 NEXUS connector requires LA-7794 GLENAIR51 NEXUS connector requires LA-7797
