Search results for "la-3791"
supports SMARTi_LU, XC2xxx, XE16x Onchip Trace and MCDS features through JTAG/DAP please provide the serial number for LA-7759 together with the order
supports decoding of MCDS-based trace data, on-chip and off-chip please add the serial number of the existing serial preprocessor or the PowerTrace Serial to your order
supports decoding of MCDS-based trace data, on-chip and off-chip please add the serial number of the existing debug cable to your order
Preprocessor for PPC4xx high speed trace port (Aurora based) up to 4 lanes, up to 6.5 Gbit/s per lane Requires PowerTrace II Converters for Samtec22/46/70 have to be ordered separately voltage range 0.15V to 1.25V

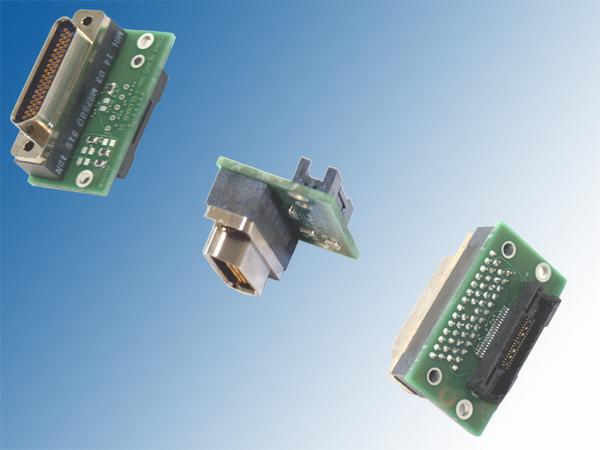

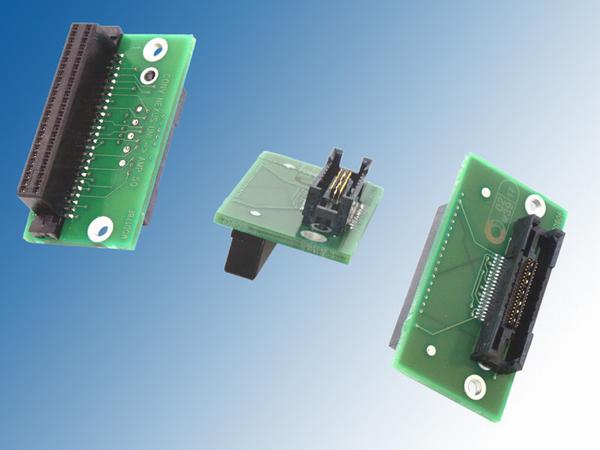

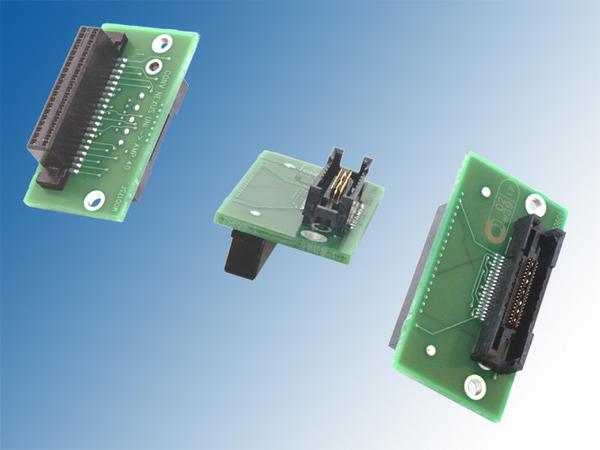

Aurora NEXUS Preprocessor for Qorivva MPC57xx/SPC5 (high-speed serial trace port) - supports reference clock output up to 3125MHz POWER TRACE II / III: full support Supported speeds per lane: 4 lanes @ 4.25Gbps 3 lanes @ 6.0Gbps 2 lanes @ 6.25Gbps 1 lane @ 6.25Gbps POWER TRACE ETHERNET or POWER TRACE PX limited support Supported speeds per lane: 4 lanes @ 1.25 GBPS 2 lanes @ 2.5 GBPS - POWER TRACE ETHERNET module must have serial number E04xxxxxxxx or higher Required converter: - Samtec34 on target requires LA-3871: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec34 including Samtec 34-pin flex extension cable - Samtec22 on target requires LA-3872: Converter Samtec40 HSTP+AUTO26+JTAG14 to Samtec22 including Samtec 22-pin flex extension cable voltage range 0.15V to 1.25V
Supports Qorivva MPC57xx/SPC57XX Aurora NEXUS (high-speed trace port) please add the serial number of the preprocessor to your order
Preprocessor for TriCore Aurora Giga-Bit Trace (Aurora high-speed trace) POWER TRACE II / III: full support Supported speeds per lane: 4 lanes @ 4.25Gbps 3 lanes @ 6.0Gbps 2 lanes @ 6.25Gbps 1 lane @ 6.25Gbps POWER TRACE ETHERNET or POWER TRACE PX limited support Supported speeds per lane: 4 lanes @ 1.25 GBPS 2 lanes @ 2.5 GBPS - POWER TRACE ETHERNET module must have serial number E04xxxxxxxx or higher voltage range 0.15V to 1.25V
Supports decoding of MCDS-based trace data, on-chip and off-chip Requires LA-3829 Conv. Samtec40 to Samtec22 TriCore AGBT please add the serial number of the preprocessor to your order
Preprocessor for ARC Real-Time Trace (ARC RTT) Connector cable and software, 600 MHz clock speed, 8,16,32 Bit Trace Port width, Variable threshold level and termination voltage, AUTOFOCUS self calibration technology, Supports 1.2 to 3.3V - else contact support Requires PowerTrace Version 6 or higher or PowerTrace II / III
Trace license to support ARC Nexus Trace (ARC RTT), applicable to an AutoFocus II preprocessor. Requires an AutoFocus II preprocessor with a base serial number of C1210xxxxxxx or higher. Please add the base serial number of your existing AutoFocus II preprocessor to your order.
