The AUTO26 Debug Probe supports a wide range of processor architectures and automotive requirements which make it unique in the embedded industry.

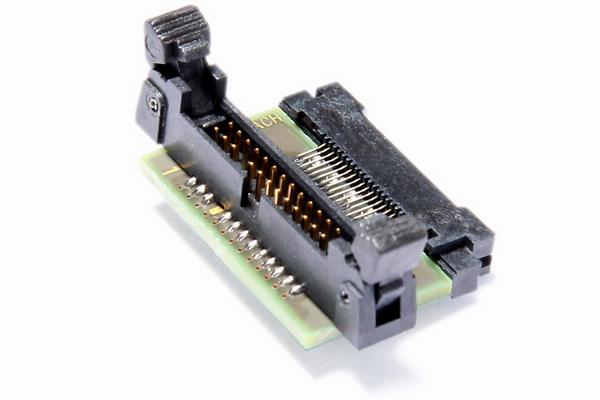

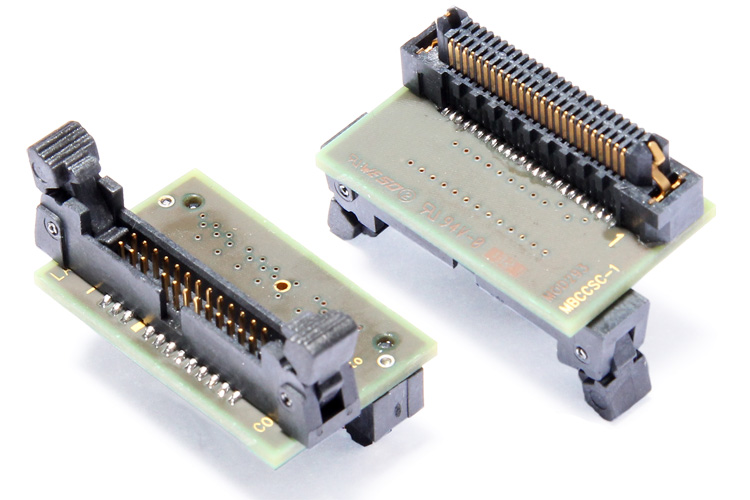

"AUTO26 Debug Probe OVERVIEW Excellence for Automotive Projects The AUTO26 Debug Probe was designed specifically..." "AUTO26 to MICTOR38 MPC5xxx LA-3874 Converter from Automotive Debug Cable (26-pin) to Mictor 38pin (NEXUS..." "AUTO26 to Samtec50 MPC5xxx LA-3875 Converter from Automotive Debug Cable (26-pin) to Samtec 50pin (NEXUS..." "AUTO26 to MICROCHIP-8 LA-2773 Converter from Automotive Debug Cable (26-pin) to MICROCHIP-8 for LA-2760..." "AUTO26 to JTAG14 RH850 LA-2700 Converter from Automotive Debug Cable (26-pin) to 14 Pin RH850 connector..."

Vendor: Samsung Semiconductor Family: Cortex-A_Armv8
AUTO26 Whisker for CombiProbe IN PRODUCT CATALOG
LA-4553

AUTO26 Whisker for CombiProbe suitable for TriCore and dsPIC with 26-pin automotive connector, supporting DAP (DAP2, DAP3, DAP4, DAPWide), JTAG, DXCPL/DXCM. For optimal performance, we recommend using a DAP mode. DAP streaming is supported for TriCore (in DAP mode) and works most effectively with DAPWide (up to 320 Mbit/s). For DXCPL/DXCM, you will likely require the CAN-Box (LA-3889) as well. Voltage Range: 1.8V to 5.0V. Debug Clock Frequency: 10 kHz to 160 MHz Target Connector: AUTO26, AUTO20, AUTO10 Requires a CombiProbe or CombiProbe 2. For dsPIC only JTAG is supported and the converter LA-2773 to the 8-pin Microchip connector is recommended. Please note that TriCore SoCs usually support only 3.3V or 5V in DAP mode. Debug clock frequency in JTAG mode is typically limited to 40 MHz on TriCore SoCs (while up to 160 MHz is supported in DAP mode).

CombiProbe 2 for AUTO26 (PACK) IN PRODUCT CATALOG
LA-3081

CombiProbe 2 with AUTO26 Whisker for debugging and DAP Streaming, supporting DAP (DAP2, DAP3, DAP4, DAPWide), JTAG, DXCPL/DXCM. For optimal performance, we recommend using a DAP mode. DAP streaming is supported for TriCore (in DAP mode) and works most effectively with DAPWide (up to 320 Mbit/s). For DXCPL/DXCM, you will likely require the CAN-Box (LA-3889) as well. Voltage Range: 1.8V to 5.0V. Debug Clock Frequency: 10 kHz to 160 MHz Target Connector: AUTO26, AUTO20, AUTO10 Trace Memory: 512 MByte. Includes the TRACE32 software for Windows, Linux and macOS on DVD and for download. Requires the following A-license: LA-7756A (Debugger for TriCore Standard Additional). Trace analysis and display requires LA-3799X (Trace License for TriCore ED). Requires Power Debug Interface USB 3.0,PowerDebug II, PowerDebug PRO, PowerDebug E40 or PowerDebug X50. Please note that TriCore SoCs usually support only 3.3V or 5V in DAP mode. Debug clock frequency in JTAG mode is typically limited to 40 MHz on TriCore SoCs (while up to 160 MHz is supported in DAP mode). Extend your CombiProbe with a Mixed-Signal Probe (LA-2500), to record digital and analog signals and correlate them with MCDS DAP streaming. (Requires PowerView R.2024.02 or higher). Alternatively extend your CombiProbe with a second AUTO26 Whisker (LA-4553) and a multicore license (LA-7960X) to debug and trace two TriCore chips simultaneously. (Req. PowerView R.2024.09 or higher).

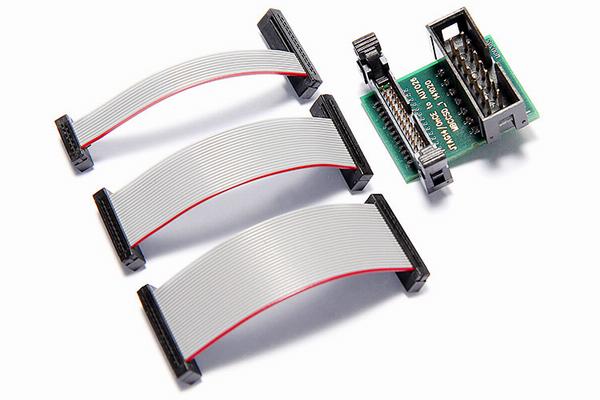

Conv. JTAG14 OnCE to AUTO26 IN PRODUCT CATALOG
LA-3876

Converter from 14 Pin JTAG/OnCE MPC5XXX to AUTO26/20/10 use with LA-7753 JTAG Debugger Qorivva MPC5xxx/SPC5xxx (ICD) to connect to targets designed for LA-2708 (Debugger for MPC5xxx Automotive PRO) LA-3206 Debugger for MPC5xxx AUTO26 (PACK) LA-3736 (JTAG Debugger for MPC5xxx Automotive)

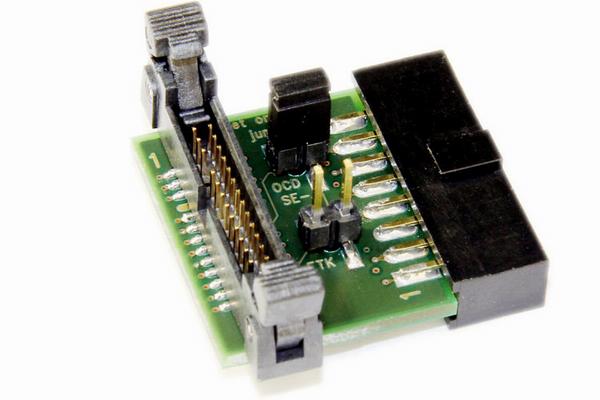

Conv. AUTO26 to JTAG16-TriCore IN PRODUCT CATALOG
LA-3849

Converter 26-pin Automotive Debug Cable to 16-pin JTAG (TriCore) also supporting DAP (2-wire) for LA-2707 Debugger for TriCore Automotive PRO LA-3203 Debugger for TriCore AUTO26 (PACK) LA-3737 JTAG Debugger for TriCore Automotive

Conv. AUTO26 to JTAG14 OnCE IN PRODUCT CATALOG
LA-3873

Converter from Automotive Debug Cable (26-pin) to 14 Pin JTAG/OnCE header on target for LA-2708 Debugger for MPC5xxx Automotive PRO LA-3206 Debugger for MPC5xxx AUTO26 (PACK) LA-3736 JTAG Debugger for MPC5xxx Automotive

Conv. JTAG14 RH850 to AUTO26 IN PRODUCT CATALOG
LA-2701

Converter from 14 pin debug connector for RH850 to AUTO26 use with LA-3719 (Debugger for RH850) to connect to targets designed for LA-2709 Debugger for RH850/V850 Automotive PRO LA-3205 Debugger for RH850/V850 AUTO26 (PACK) LA-3739 Debugger for RH850 Automotive

Conv. AUTO26 to MICROCHIP-8 IN PRODUCT CATALOG
LA-2773

Converter from Automotive Debug Cable (26-pin) to MICROCHIP-8 for LA-2760 (Debugger for Microchip PIC)

Conv. AUTO-26 to 10-pin ECU14 IN PRODUCT CATALOG
LA-2745

JTAG Converter 26-pin Automotive Debug Cable (PPC/ TriCore/RH850) to 10-pin ECU14 for LA-3203 (Debugger for TriCore AUTO26 (PACK)) LA-3205 (Debugger for RH850/V850 AUTO26 (PACK)) LA-3206 (Debugger for MPC5xxx AUTO26 (PACK)) LA-2707 (Debugger for TriCore Automotive PRO) LA-2708 (Debugger for MPC5xxx Automotive PRO) LA-2709 (Debugger for RH850/V850 Automotive PRO) LA-2713 (Debug-Bundle MPC5xxx/TriCore Automotive PRO) LA-2714 (Debug-Bundle TriCore/RH850 Automotive PRO) LA-3736 (JTAG Debugger for MPC5xxx Automotive) LA-3737 (JTAG Debugger for TriCore Automotive) LA-3738 (Debugger-Bundle MPC5xxx/TriCore Automotive) LA-3739 (Debugger for RH850/V850 Automotive) LA-3753 (Debugger-Bundle TriCore/RH850 Automotive)
